cs6620 Project 3
Abe Stephens

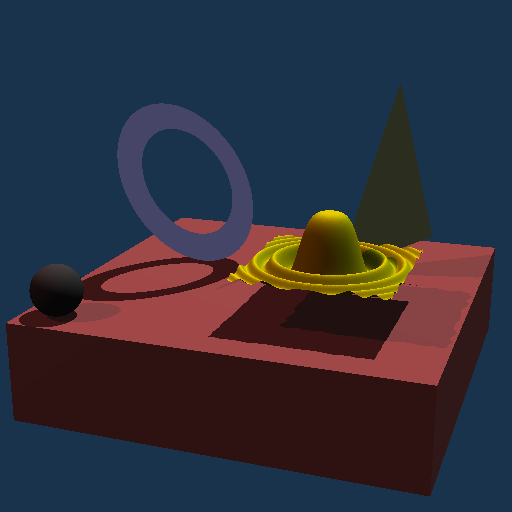

Required Image
![](project3-required0.png)
(0.228 seconds with 4 threads. 0.595 seconds with one thread)
Creative Image
![](project3-creative0.png)

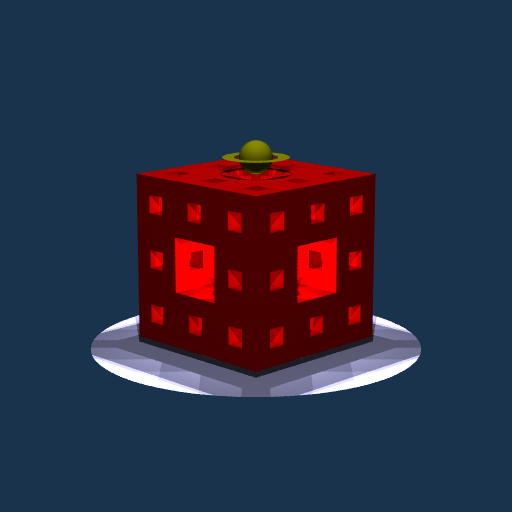

This is a Menger Sponge with several internal point lights on top of a
disc. On top of the sponge is a ring about a sphere
![](project3-creative1.png)
This is a 3-level recusion Menger Sponge rendered with ambient
occlusion and multisampled.
Extra Images
![](troy1.png)

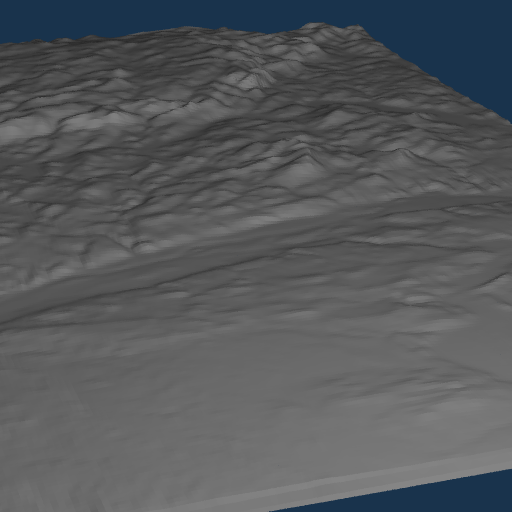

Height Data of Rensselaer County NY. (3m data from eight quads
resampled to 200x292)
Hudson river is in the foreground.
Description
Performance template may be found here.
I am currently hard coding the scene into the executable front ends
that invoke the renderer. I added several camera movement functions to
my code so that I can interactively move the camera about the scene.
I implemented the extra image by downloading eight quads in sdts format
and converted them to dem format with a another tool (google search
sdts2dem.c). Next I stitched the dem files together with some of my own
software and produced a floating point 2d nrrd. I decided I was
interested in a zoomed out view, so I downsampled the data considerably.
Time spent: 4-5 days.
