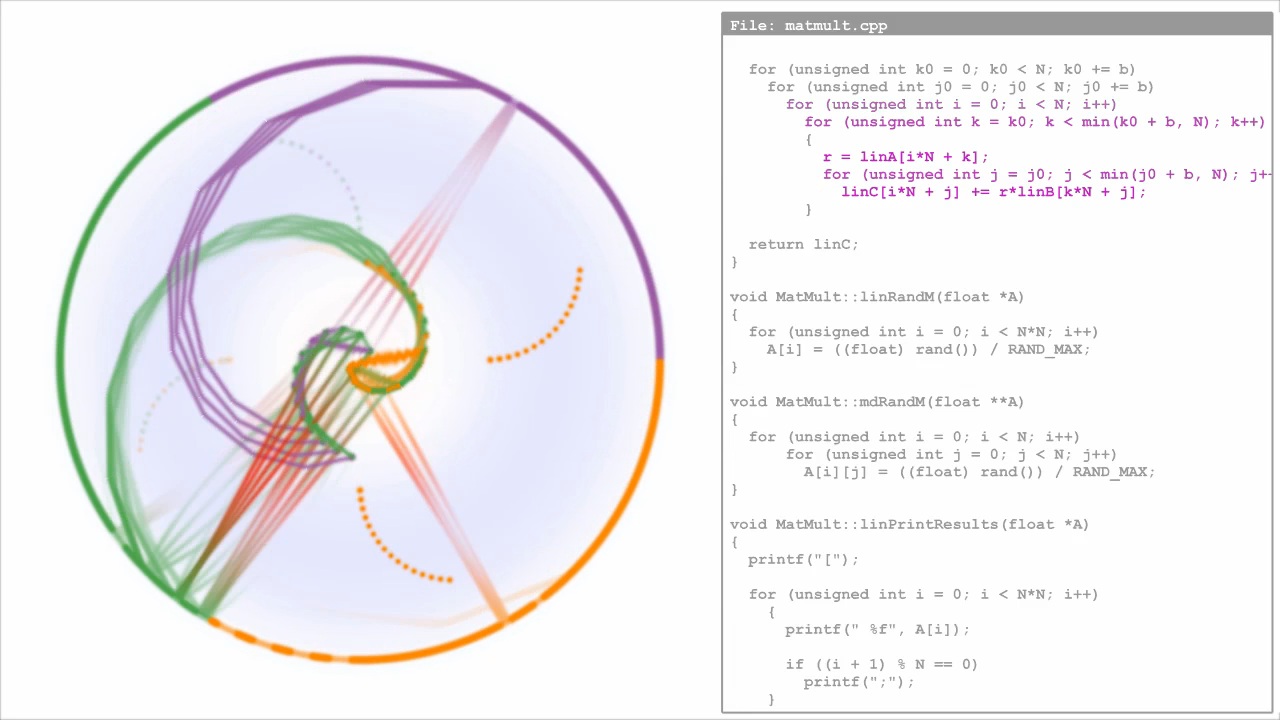

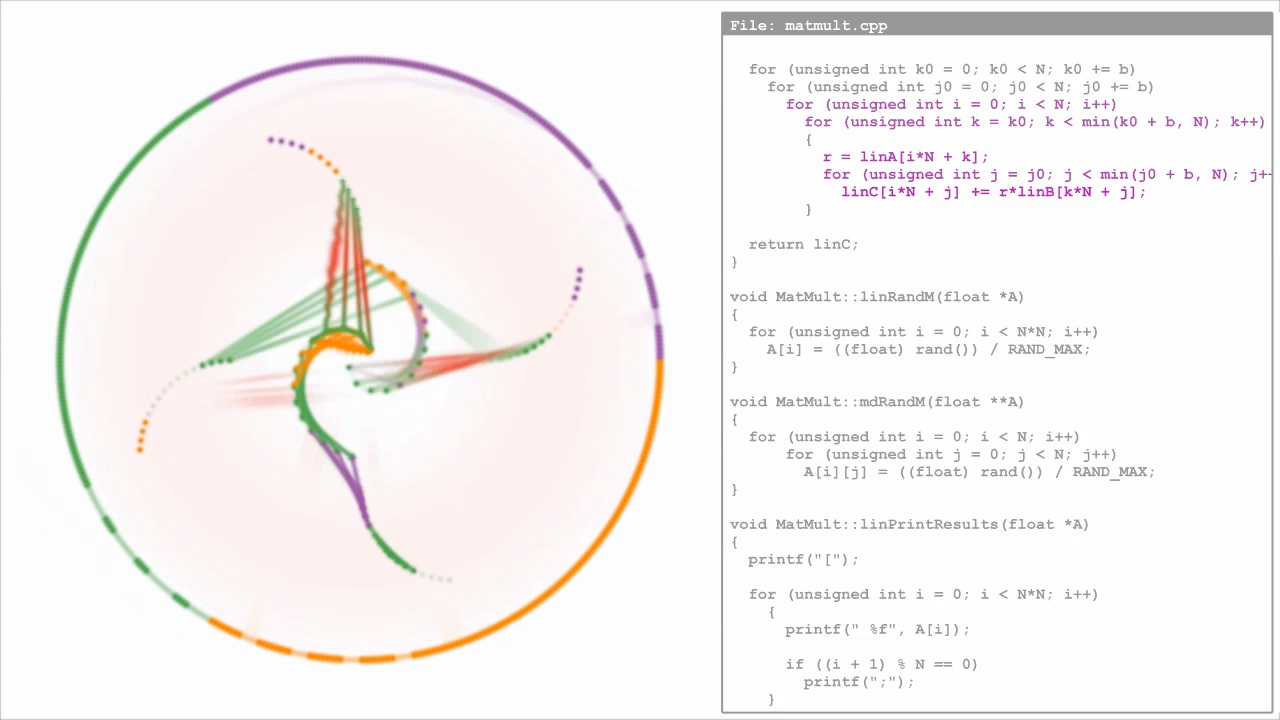

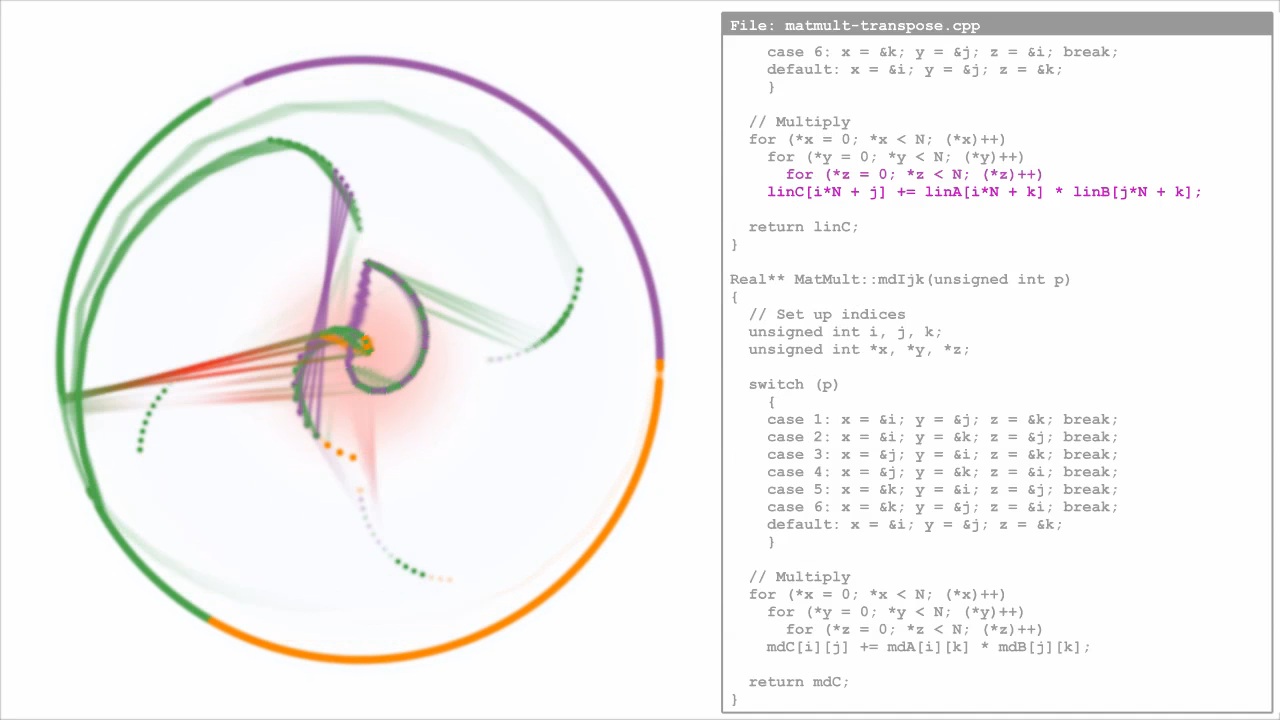

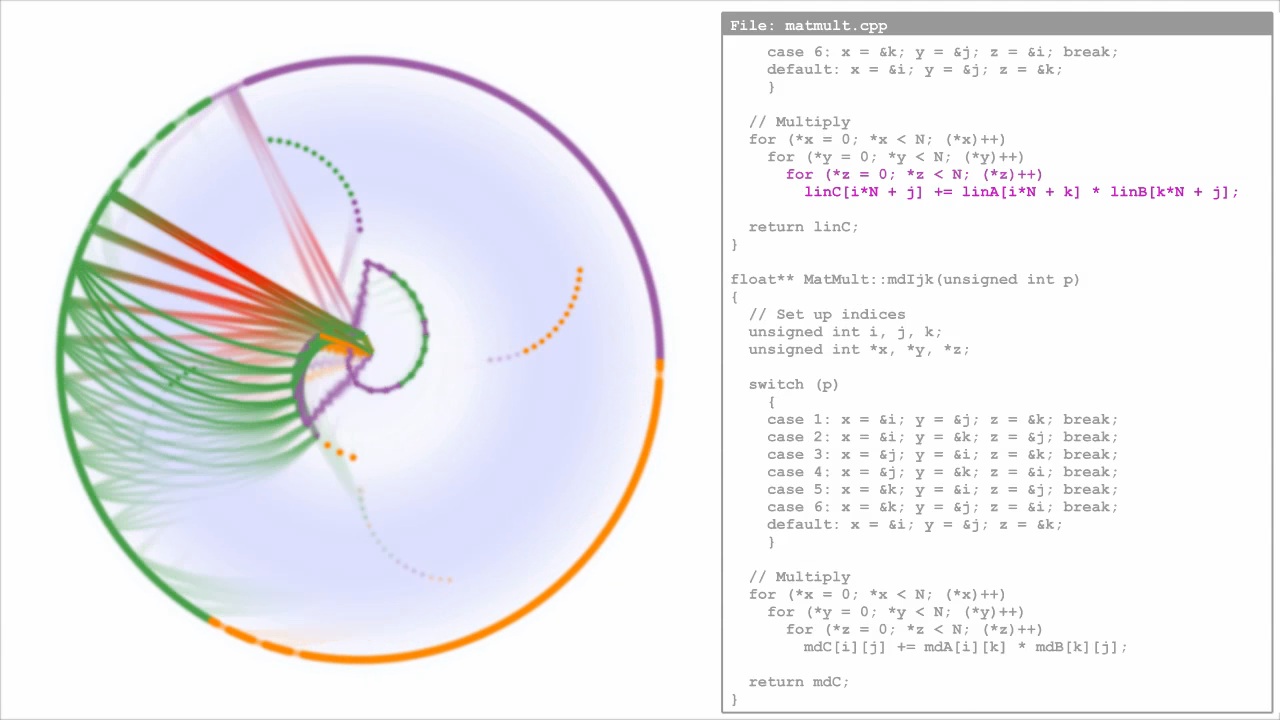

We present a system for visualizing memory reference traces, the records of the memory transactions performed by a program at runtime. The visualization consists of a structured layout representing the levels of a cache and a set of data glyphs representing the pieces of data in memory being operated on during application runtime. The data glyphs move in response to events generated by a cache simulator, indicating their changing residency in the various levels of the memory hierarchy. Within the levels, the glyphs arrange themselves into higher-order shapes representing the structure of the cache levels, including the composition of their associative cache sets and eviction ordering. We make careful use of different visual channels, including structure, motion, color, and size, to convey salient events as they occur. Our abstract visualization provides a high-level, global view of memory behavior, while giving insight about important events that may help students or software engineers to better understand their software's performance and behavior.
| Paper | [pdf] |
| Slides | [pdf] |
| Citation | [bibtex] |
Back to research page.
