Frame Widget Help

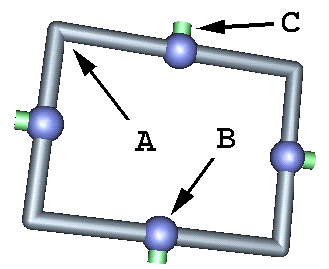

The Frame Widget consists of four cylinders connected in a rectangular
arrangement. In the middle of each of the cylinders there is a
sphere. There is a resize cylinder extending from each sphere. The
primary uses of the Frame Widget are for stream volumes, for image
plane definition, and as a "tie dye" as with the Ring Widget above.
If the user drags a sphere, the widget is rotated about its center
without changing the position of the center. If a resize cylinder is
changed, the appropriate side of the Frame Widget will be extended
without changing orientation. If a cylinder is dragged, the entire
widget moves without changing its orientation.
