View Widget Help

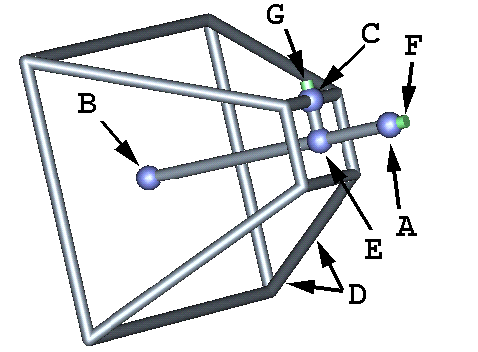

The View Widget consists of an eye point, a "look at" point, and an up
point (encompassing the up vector and the field of view). There is
also a geometric representation of the viewing frustrum defined by the
interface components. The primary use of the View Widget is to
specify a camera view from within the data space--this is useful for
producing animations and for better understanding and defining a view
which is then shown in another window.
The user can independently adjust the eye point, the up vector, the
field of view, the front clipping plane, and the back clipping plane
(also the "look at" point).
