Propogation Rate Revision 1
About
These simulations are from the original files Changwei sent, however variable heat exchange is turned on.
As such, pressure dependence is of the order of ~0.02, still very different from experimental values.
Following are several graphs representing different, possibly useful values from different simulations.
Input files can be found here.
Overall Burn Rate Graphs, 1mm resolution
As can be seen from the pressure dependence graph, preheating increases the lateral spread rate, but does
only a little for changing pressure dependence. The trends in both cases are very bad, there must be some
other basis for their behaviour. However, they seem to be quite a bit better than with variable heat exchange
on. As can be seen, the trend is fairly good for Variable Heat Exchange turned off. This, then, speaks to
a possible problem with variable heat exchange as to why the trend is so screwed up for those with it turned on.
For contrast a plot of BurningCells at 0.5mm is shown at the bottom, along with the corresponding Pressure dependence.
Overall, we see the trend is the same, with slightly different numbers (on average, higher numbers).
Pressure Dependence Graph

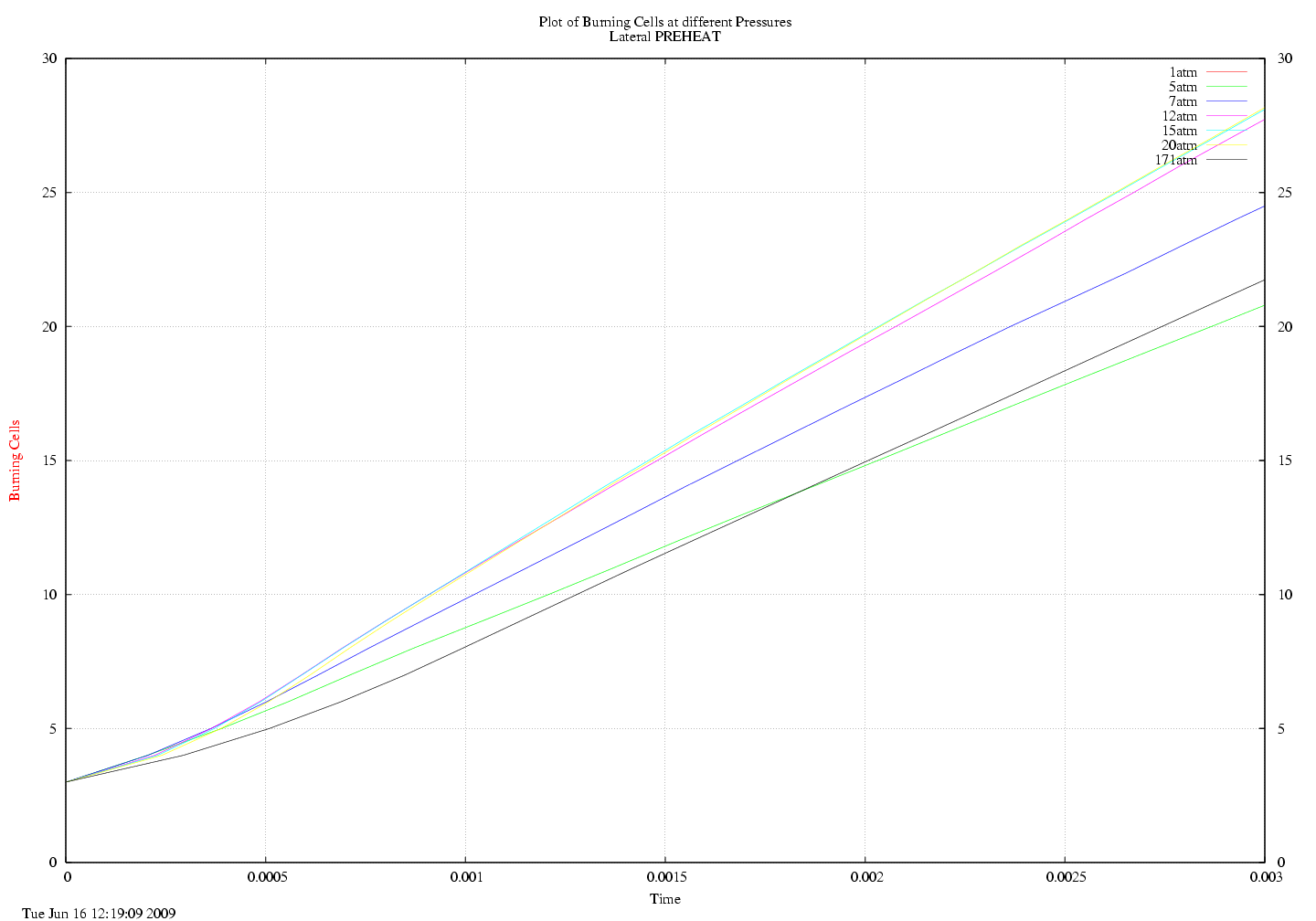

Burning Cells for all runs vs Time for Preheated Runs

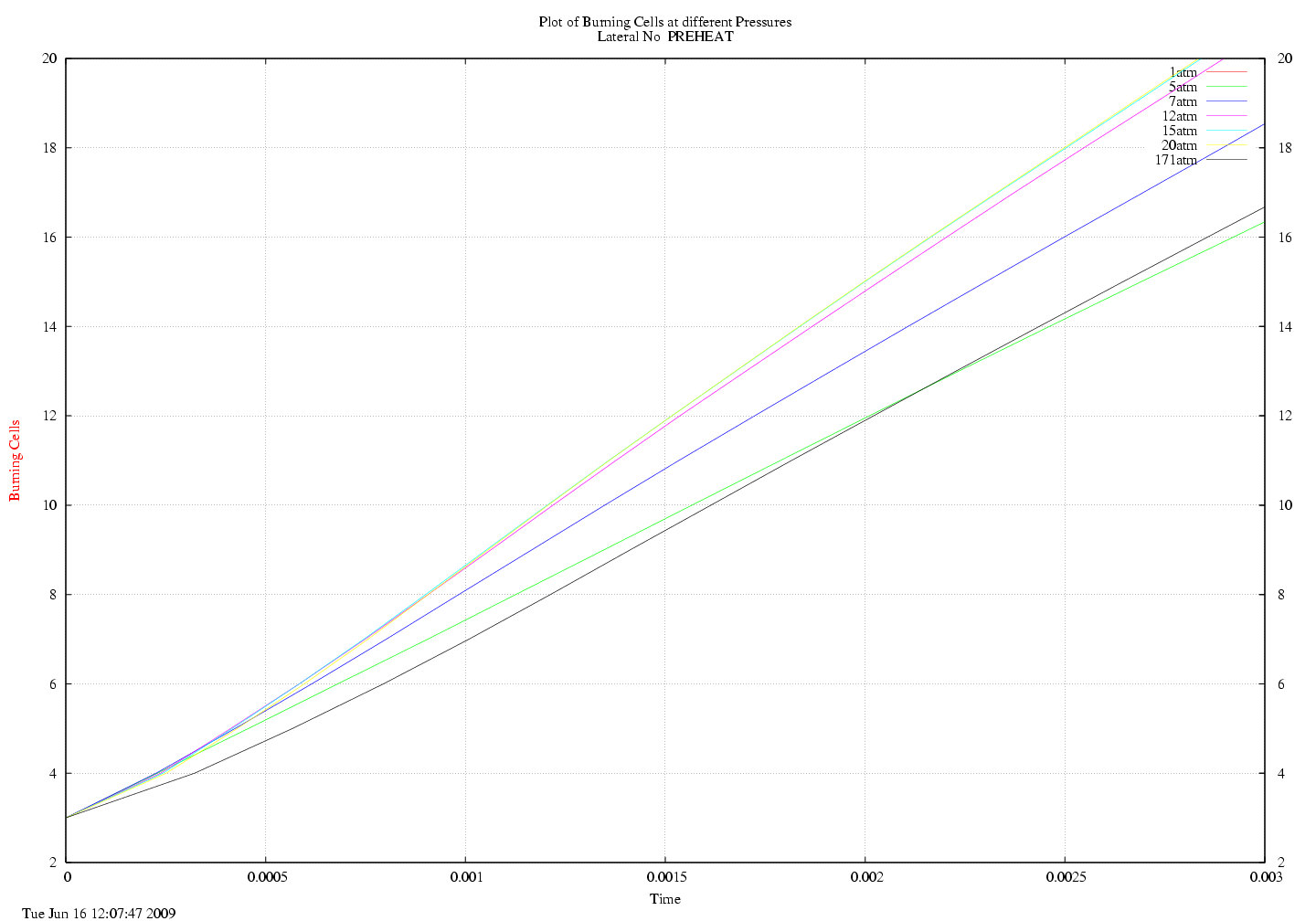

Burning Cells of all runs vs Time for Non Preheated Runs
Pressure dependence with variable heat exchange off

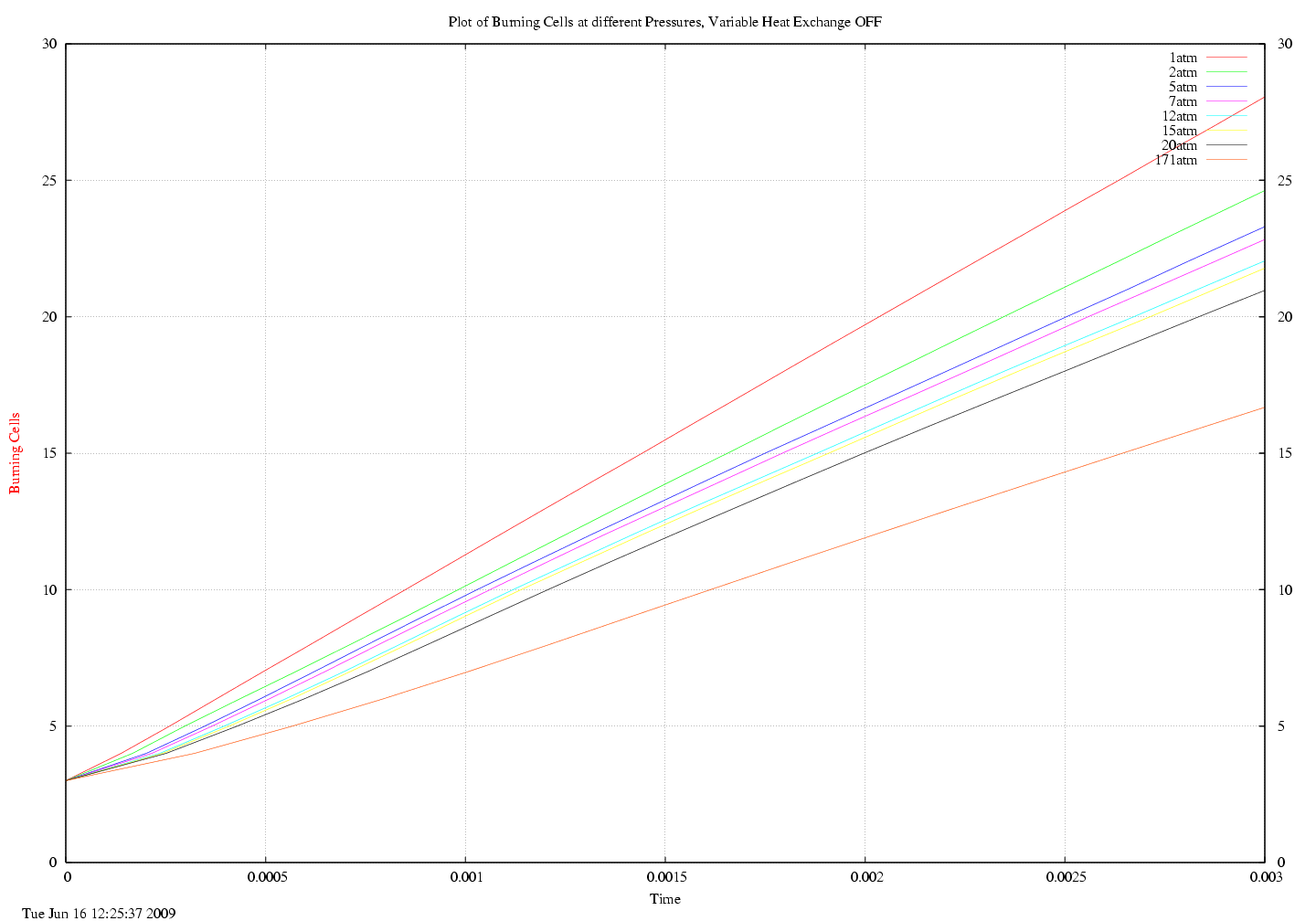

Burning Cells for all runs vs Time for variable heat exchange off

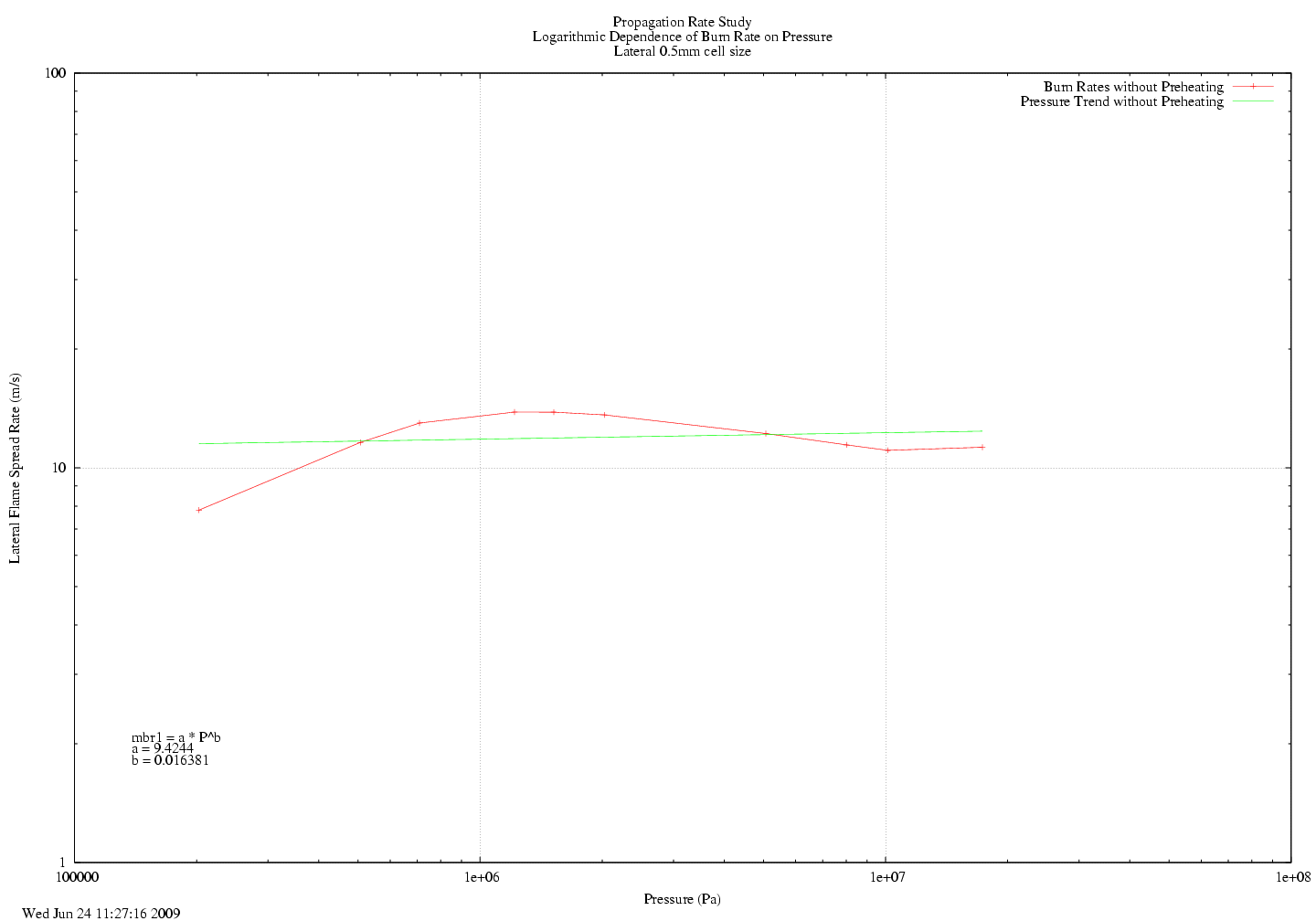

Pressure Dependence for 0.5mm run

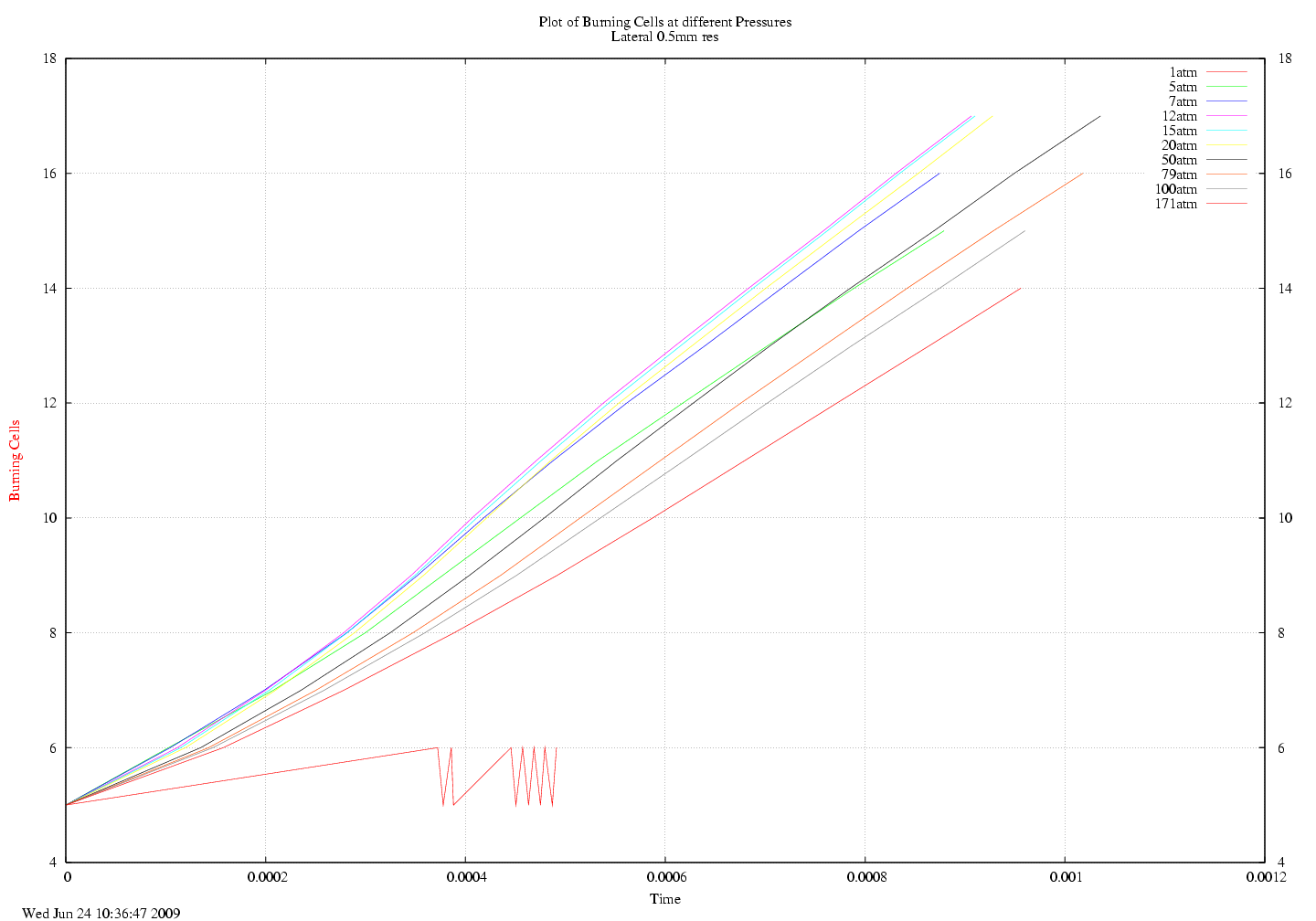

Burning Cells for 0.5mm run
No Preheating
- 5atm
Total Mass Burned, # of Burning Cells, Burning Surface Area

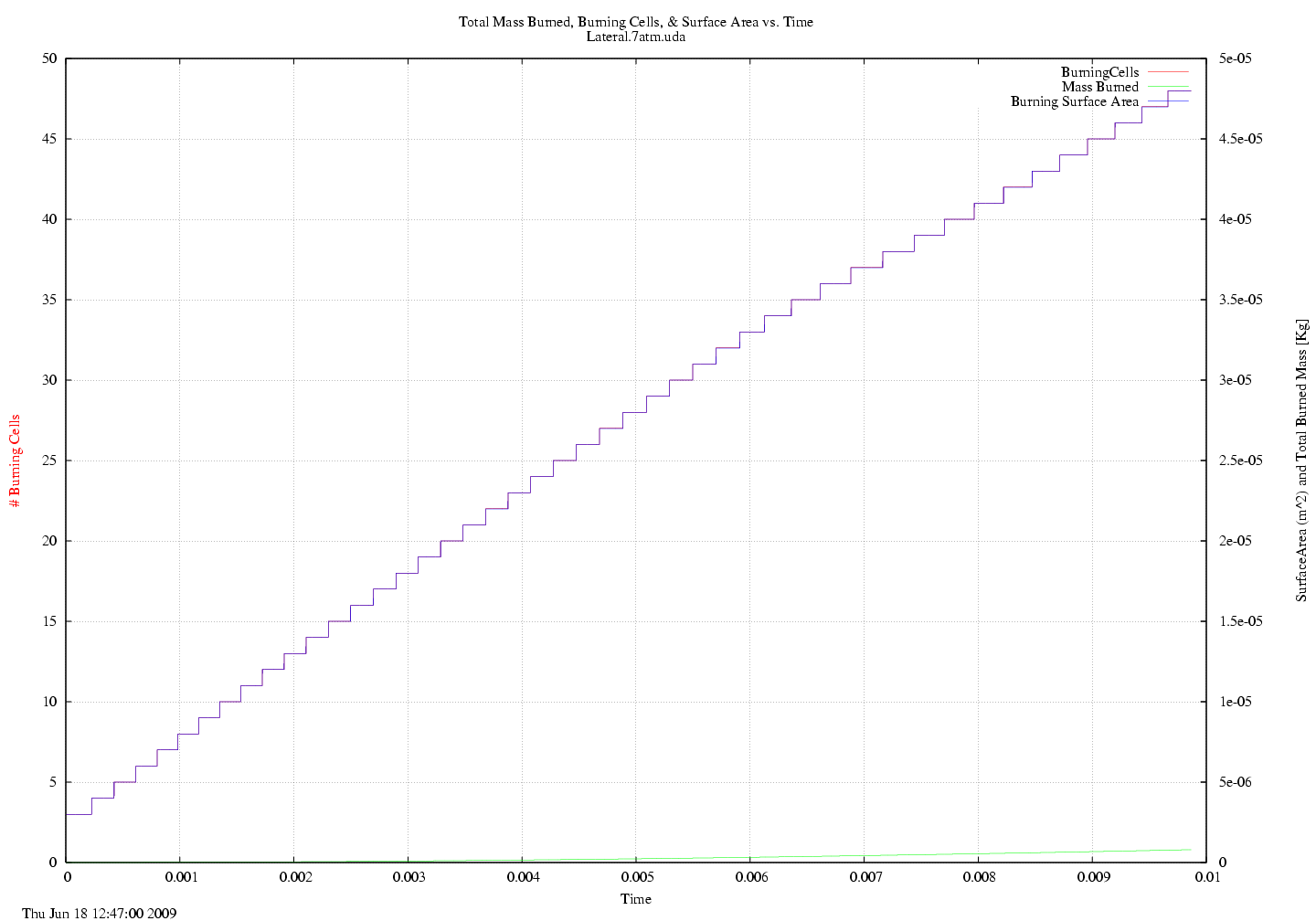

- 7atm
Total Mass Burned, # of Burning Cells, Burning Surface Area

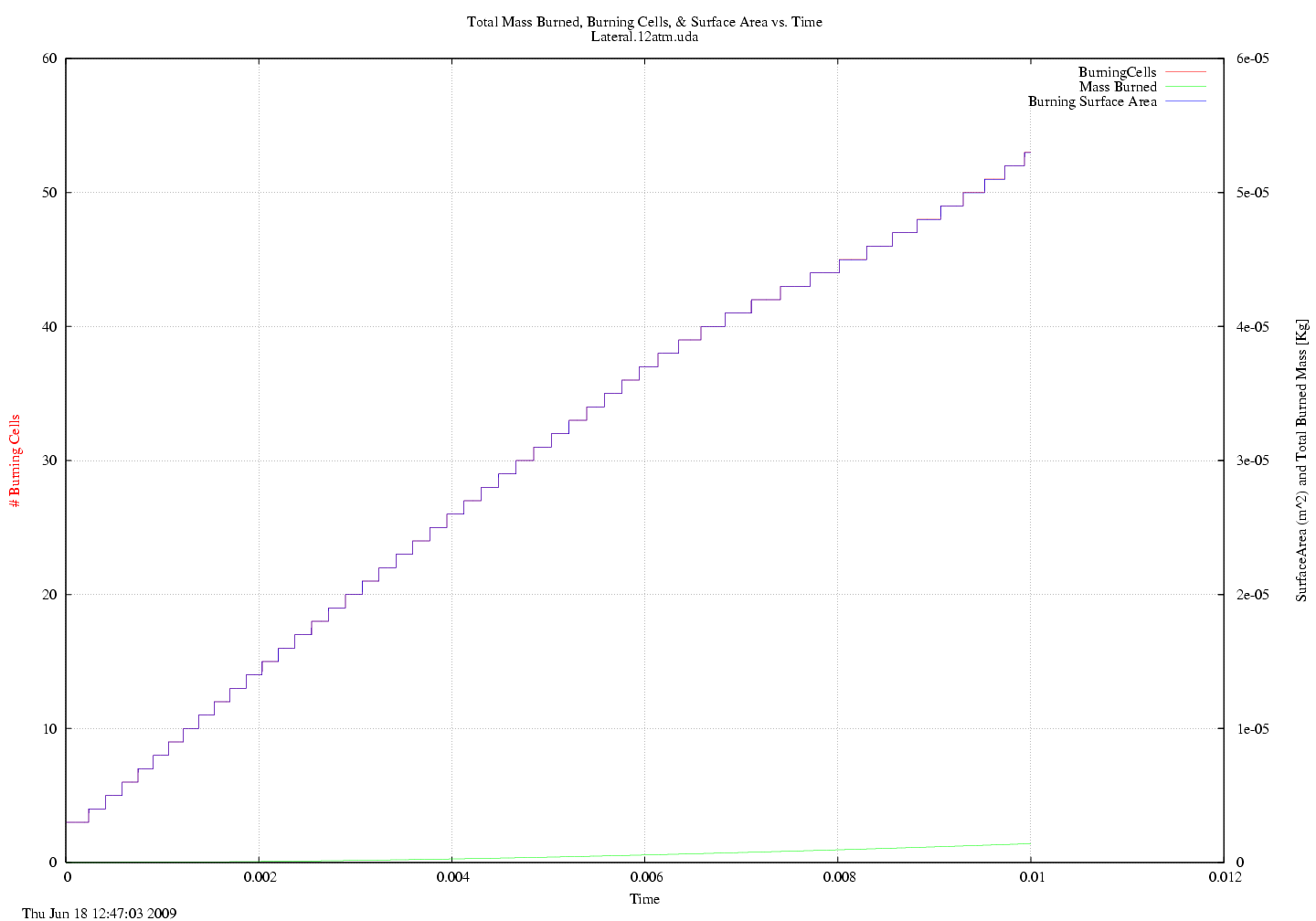

- 12atm
Total Mass Burned, # of Burning Cells, Burning Surface Area

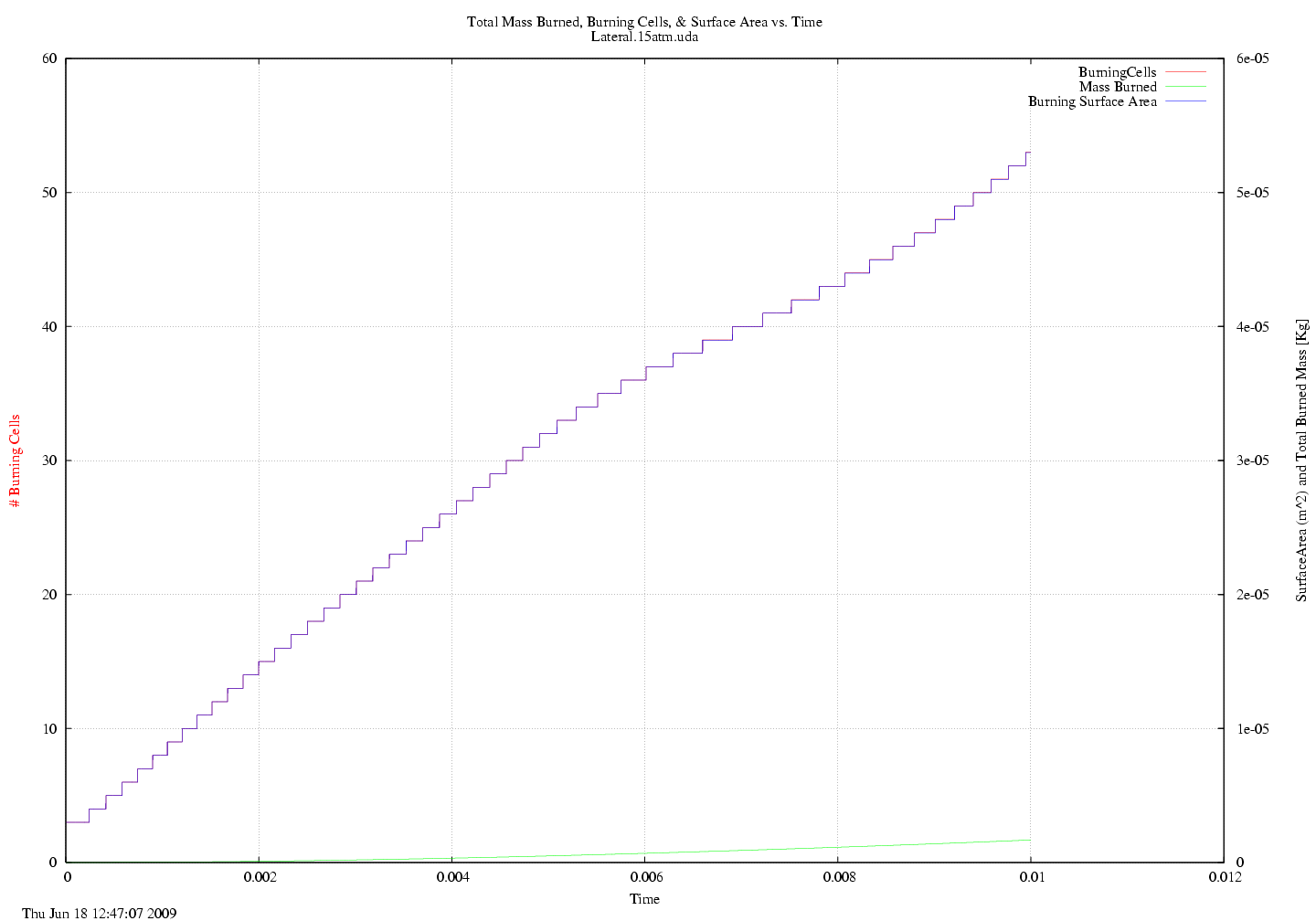

- 15atm
Total Mass Burned, # of Burning Cells, Burning Surface Area

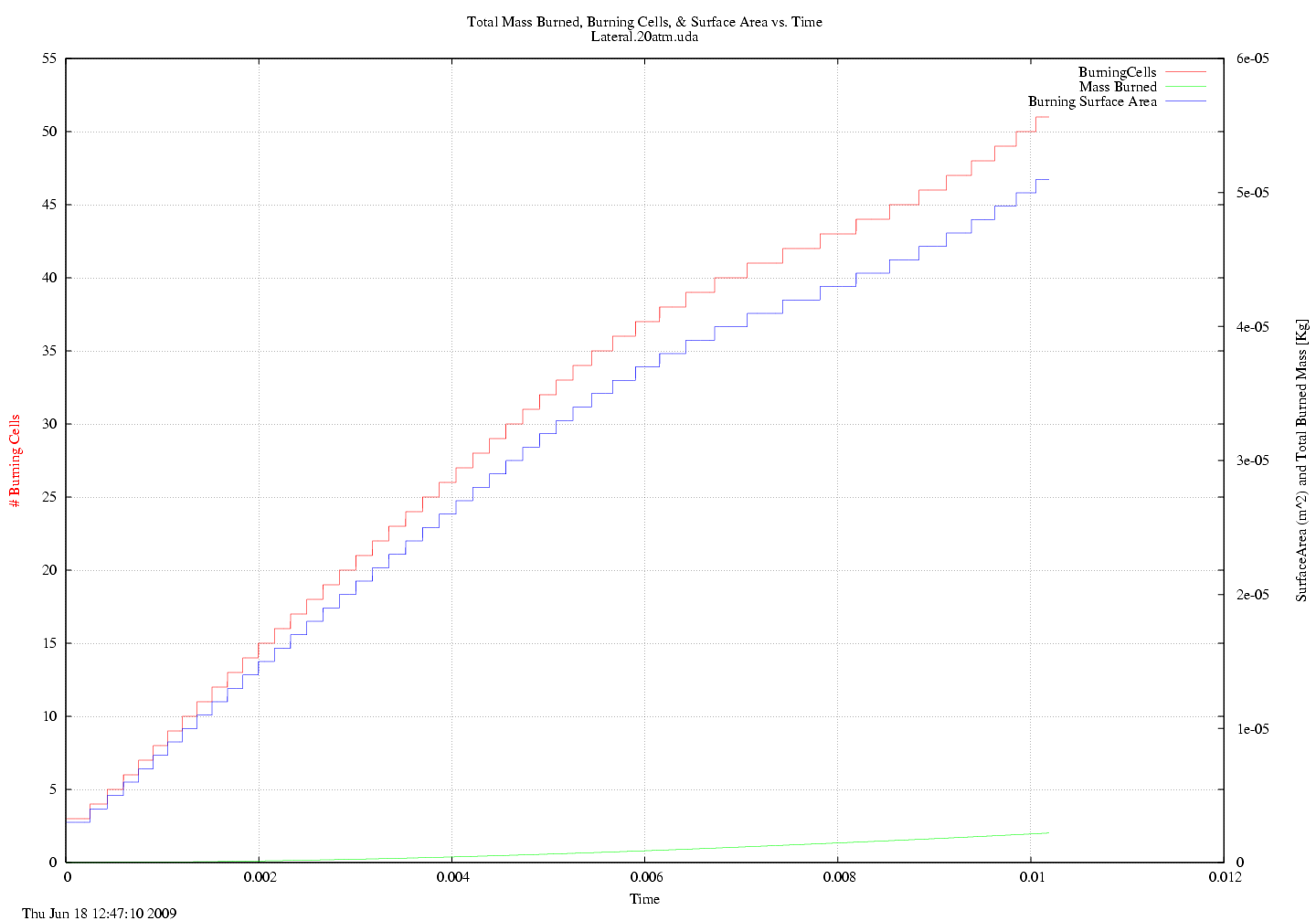

- 20atm
Total Mass Burned, # of Burning Cells, Burning Surface Area

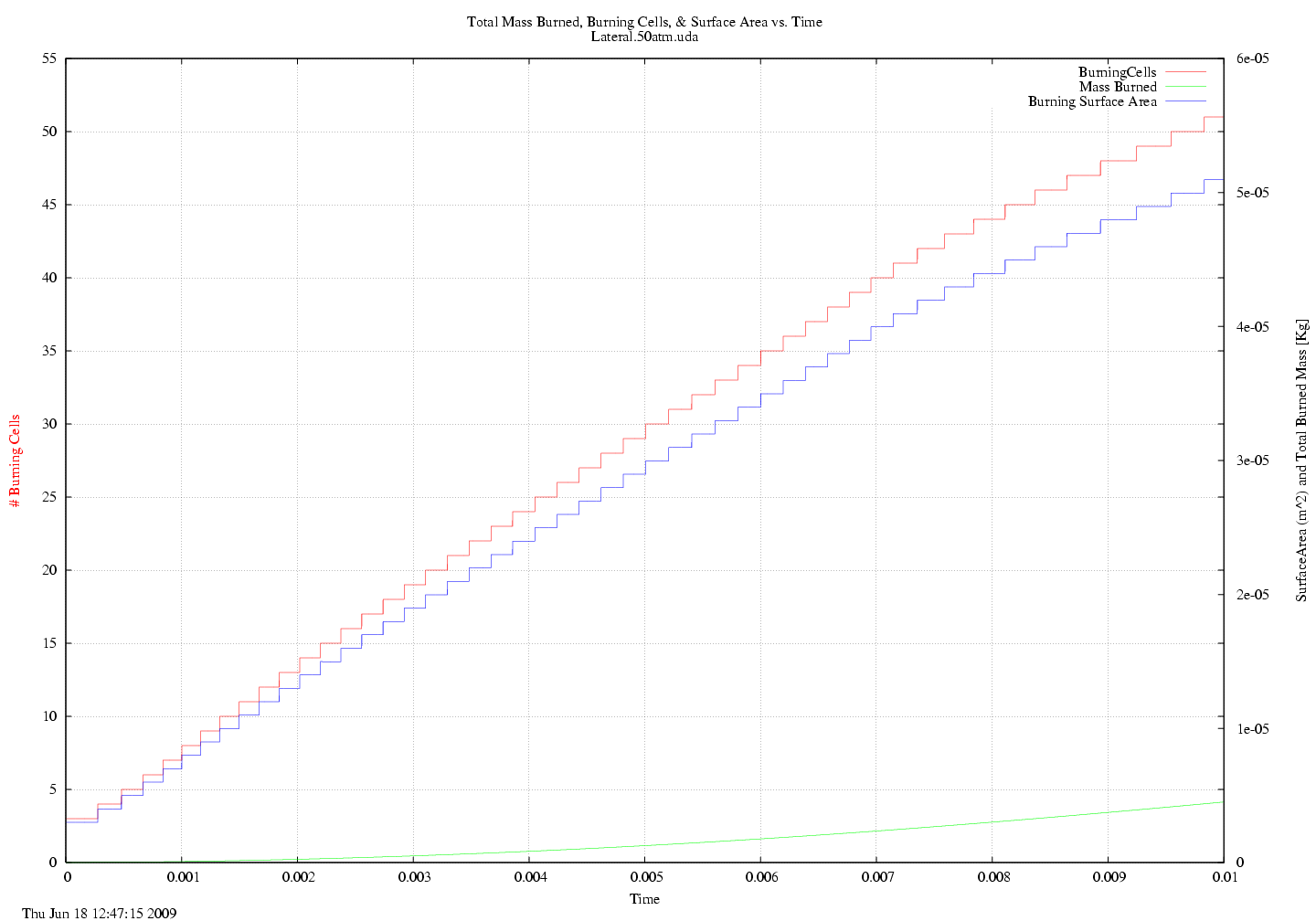

- 50atm
Total Mass Burned, # of Burning Cells, Burning Surface Area

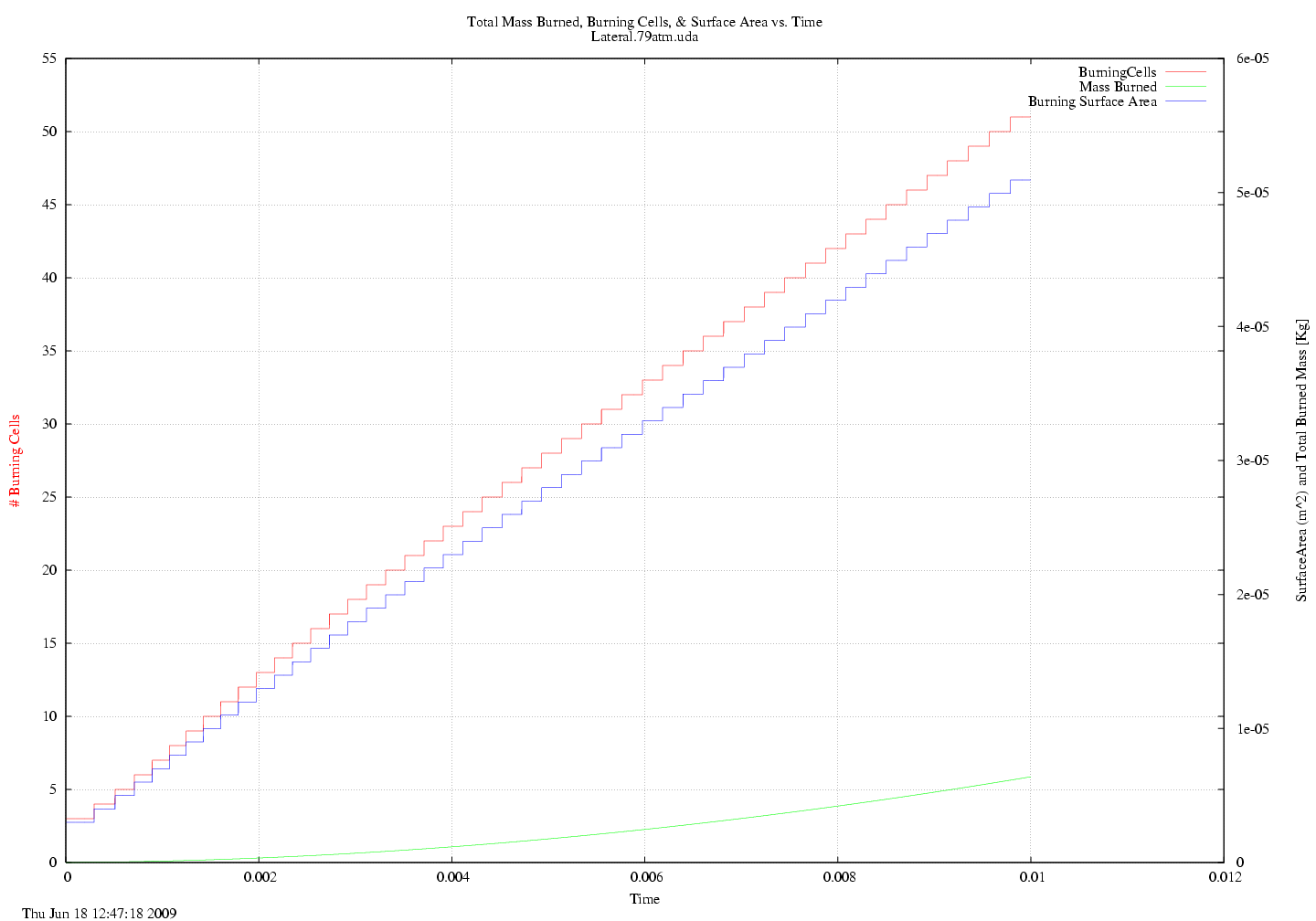

- 79atm
Total Mass Burned, # of Burning Cells, Burning Surface Area
- 100atm
Total Mass Burned, # of Burning Cells, Burning Surface Area

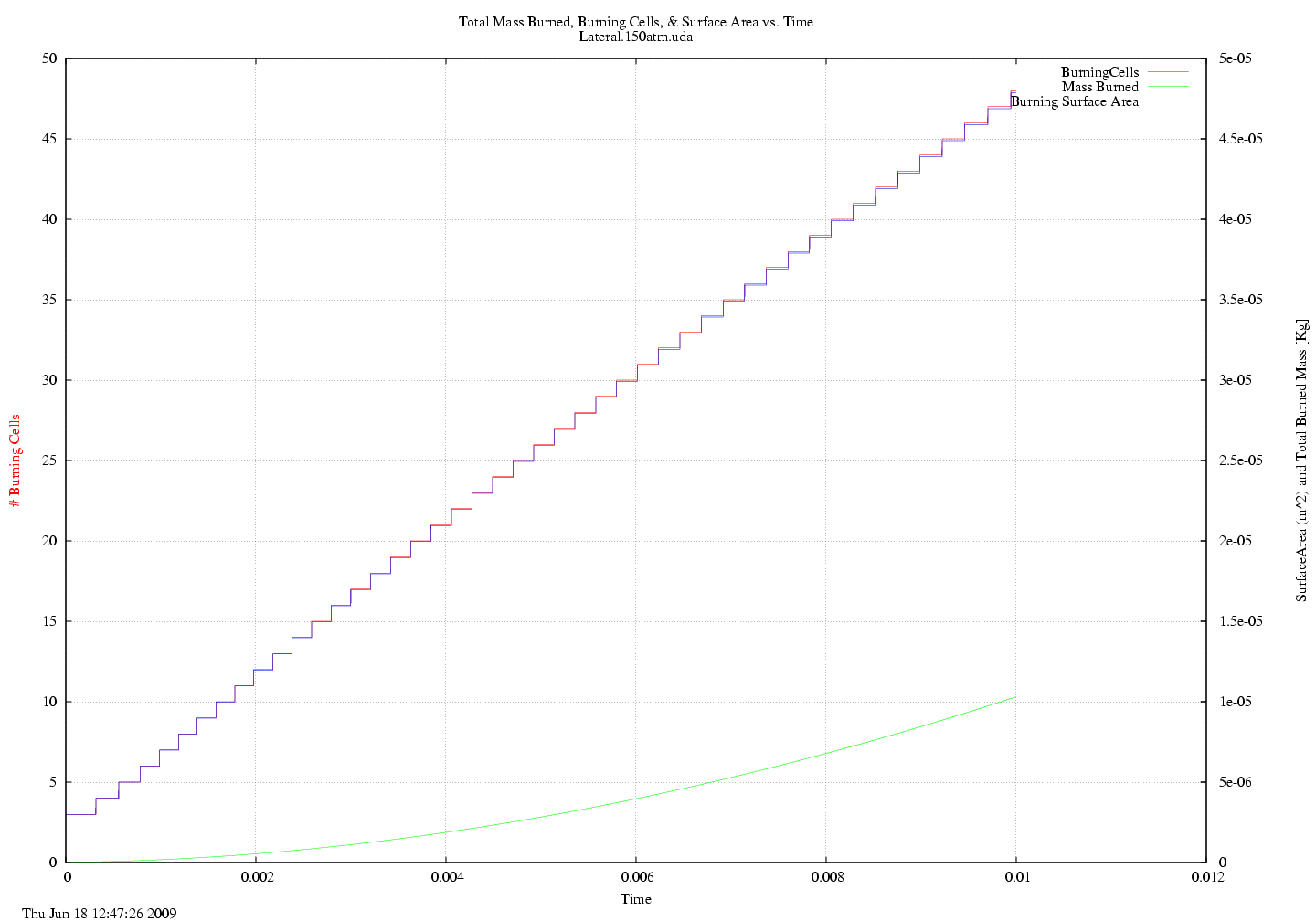

- 150atm
Total Mass Burned, # of Burning Cells, Burning Surface Area
- 171atm
Total Mass Burned, # of Burning Cells, Burning Surface Area
Preheating
- 5atm
Total Mass Burned, # of Burning Cells, Burning Surface Area

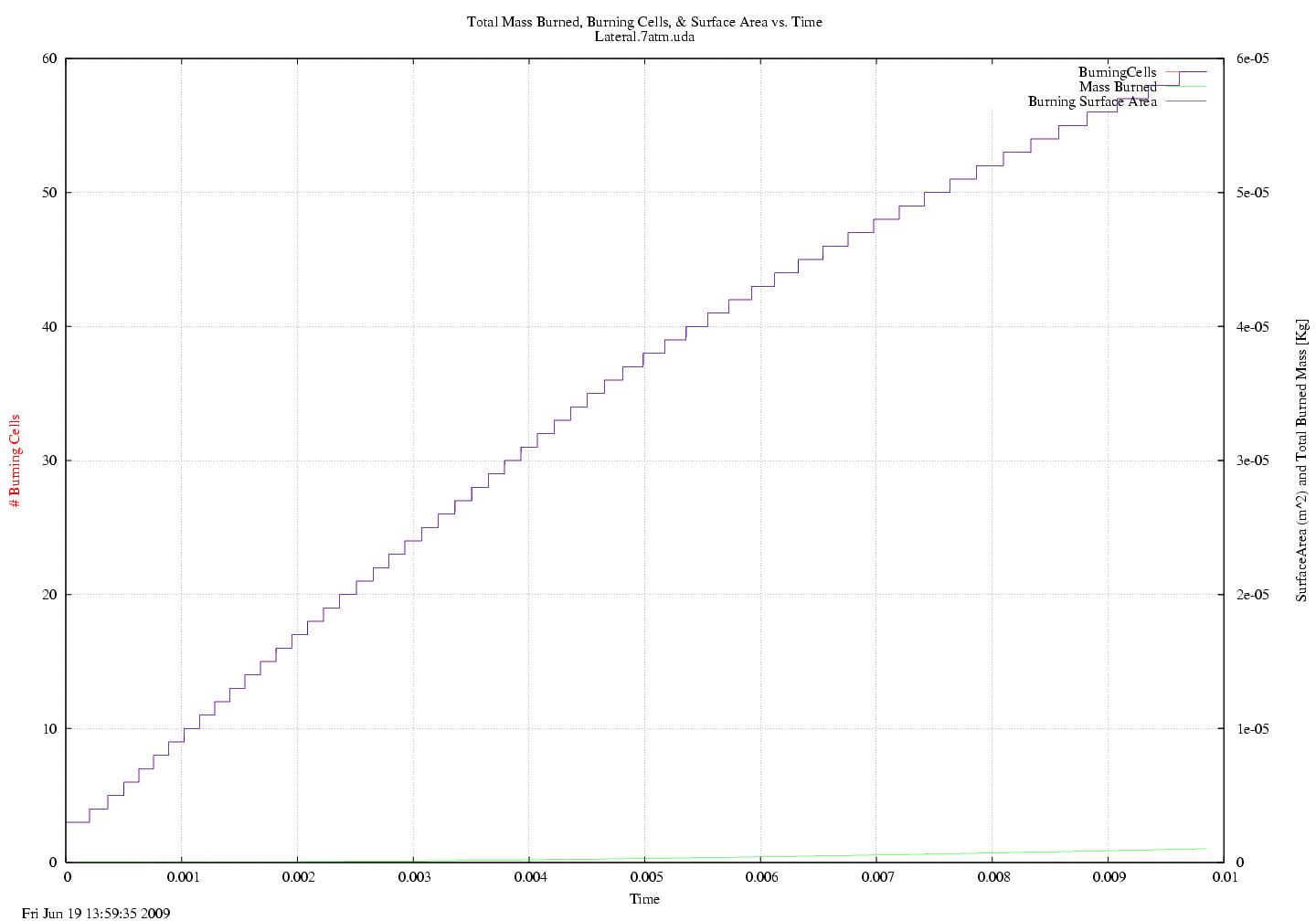

- 7atm
Total Mass Burned, # of Burning Cells, Burning Surface Area

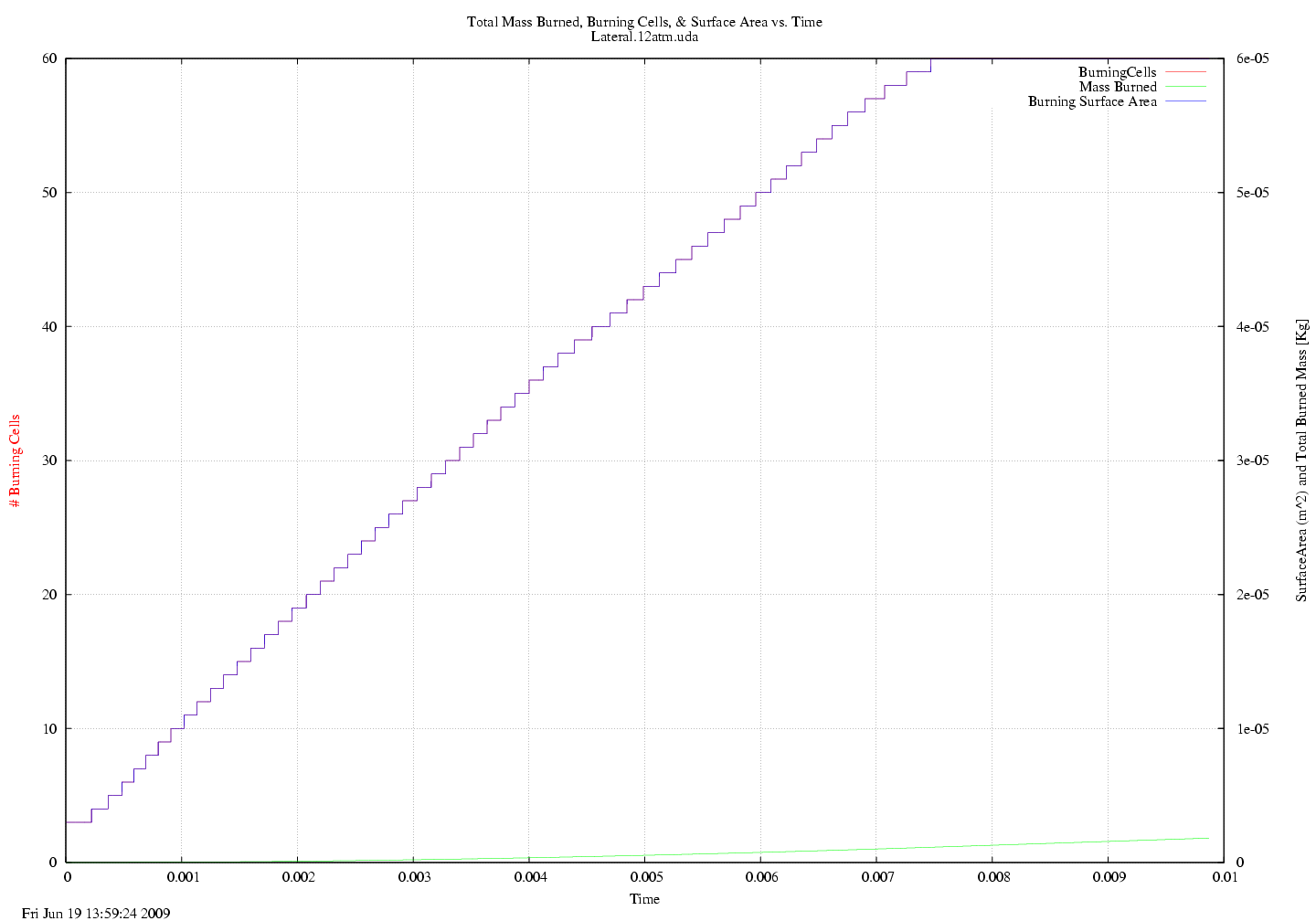

- 12atm
Total Mass Burned, # of Burning Cells, Burning Surface Area
- 15atm
Total Mass Burned, # of Burning Cells, Burning Surface Area
- 20atm
Total Mass Burned, # of Burning Cells, Burning Surface Area

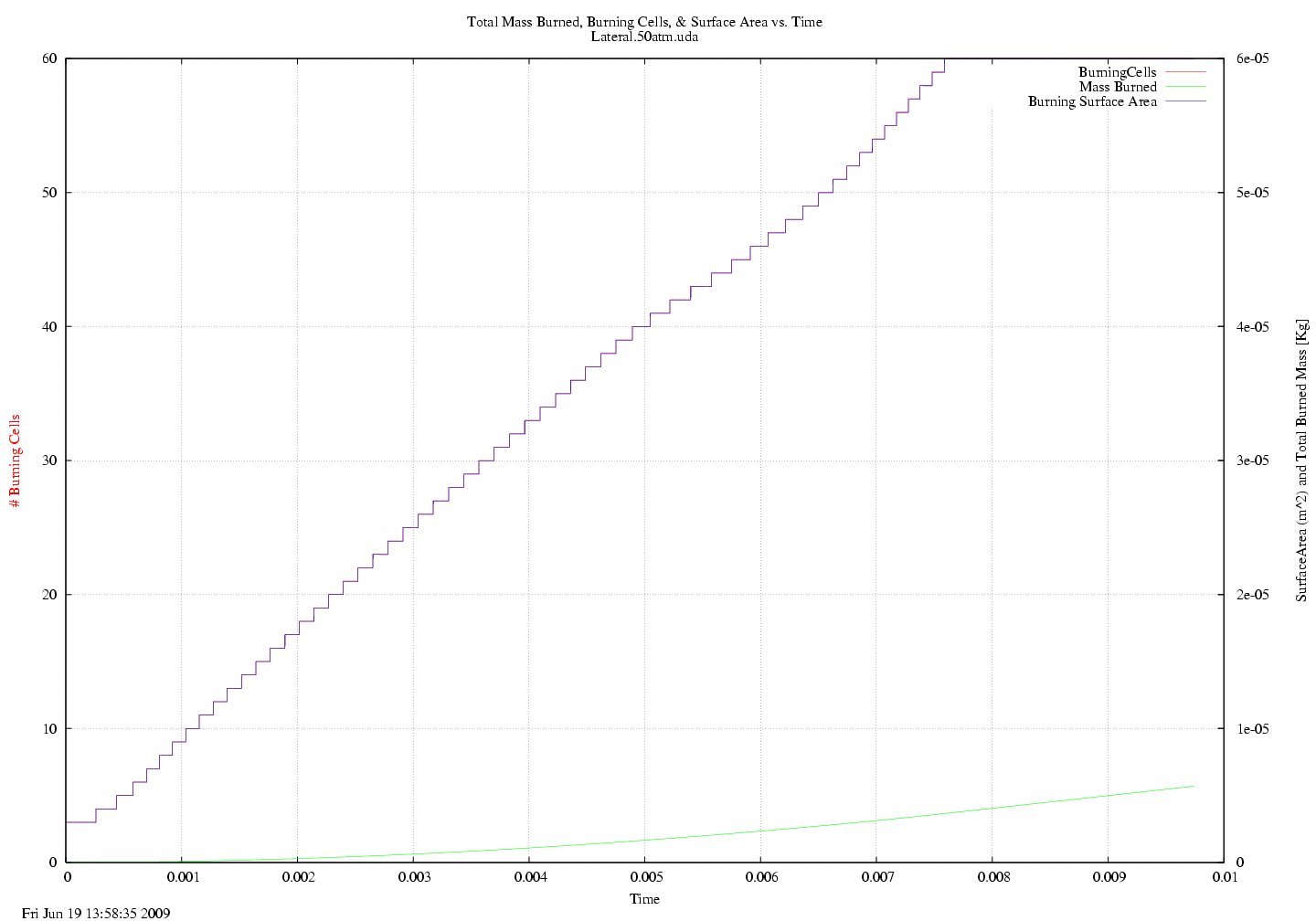

- 50atm
Total Mass Burned, # of Burning Cells, Burning Surface Area

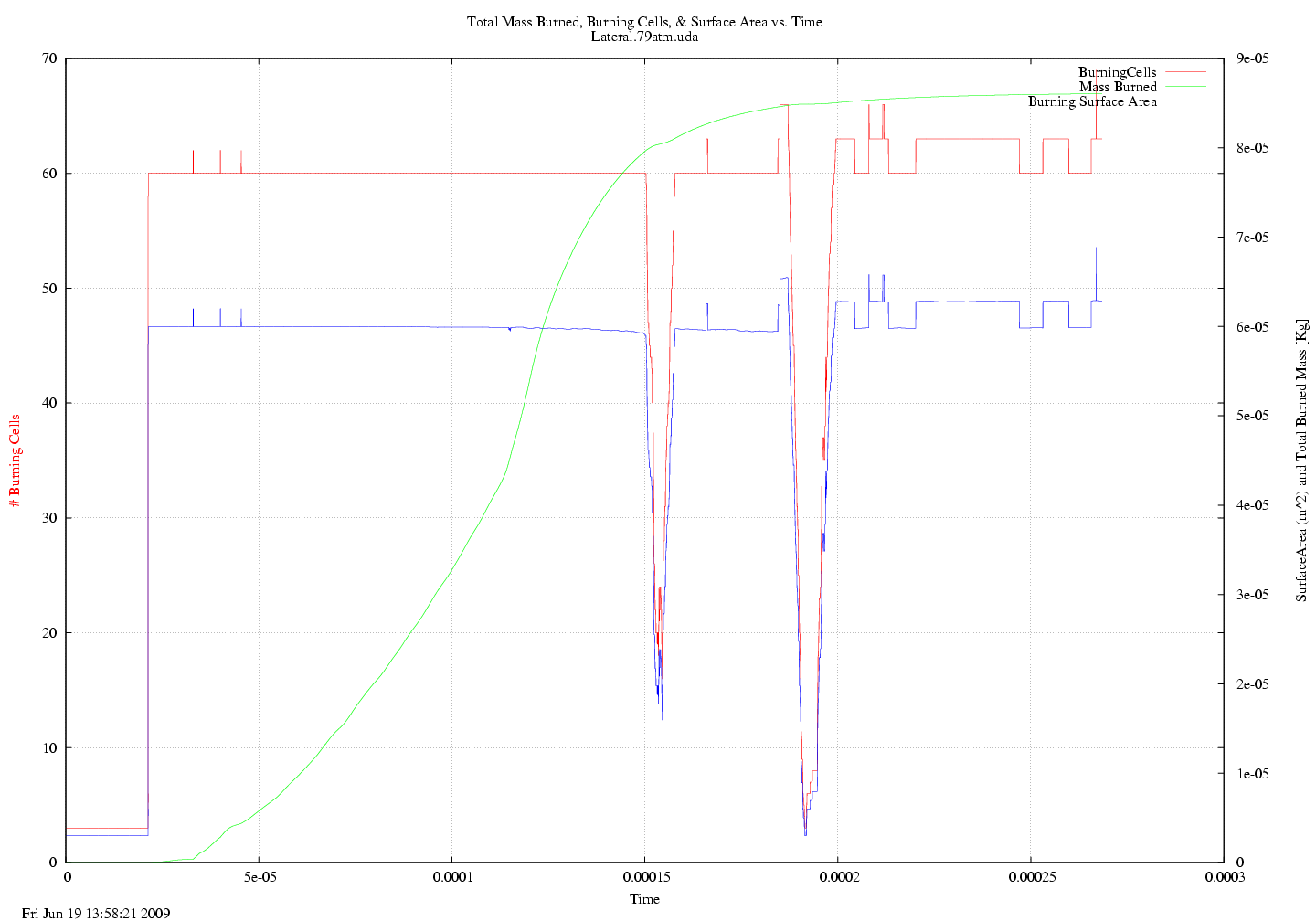

- 79atm
Total Mass Burned, # of Burning Cells, Burning Surface Area

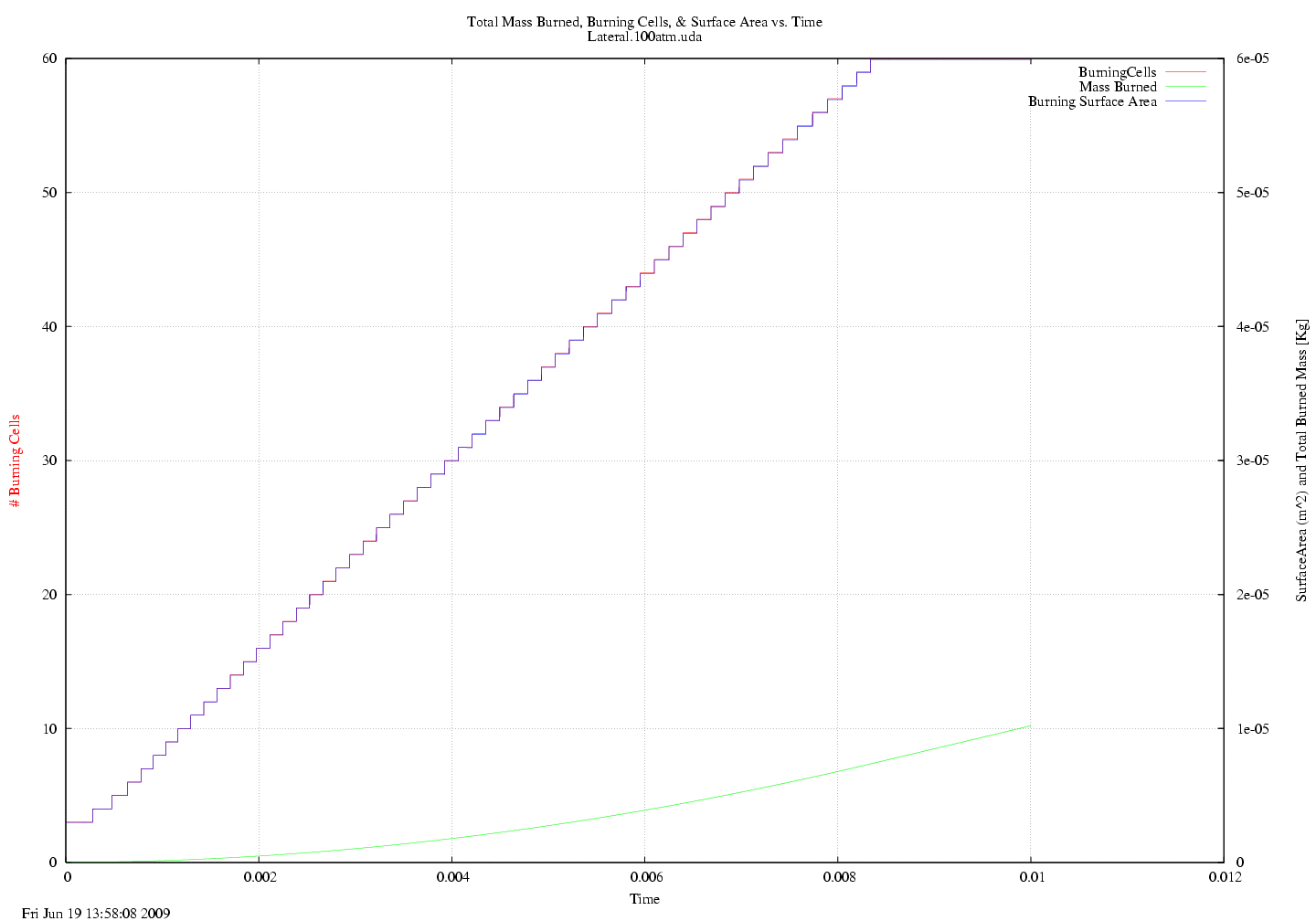

- 100atm
Total Mass Burned, # of Burning Cells, Burning Surface Area
- 150atm
Total Mass Burned, # of Burning Cells, Burning Surface Area

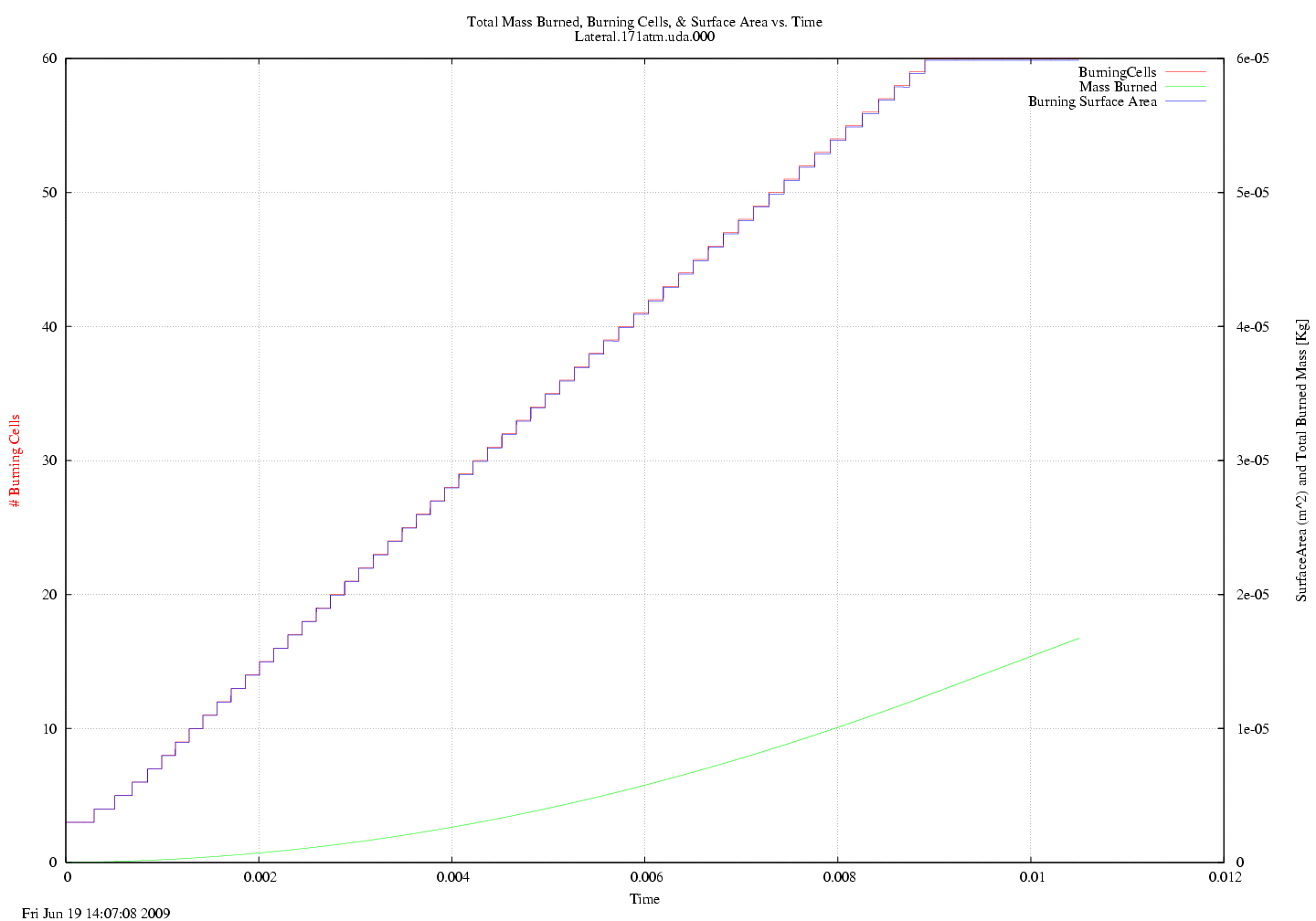

- 171atm
Total Mass Burned, # of Burning Cells, Burning Surface Area
Variable Heat Exchange Turned Off
Misc.
All file linked to by this page can be found in this directory.
