Alexandre Coninx and Georges-Pierre Bonneau and Jacques Droulez and Guillaume Thibault.
Visualization of Uncertain Scalar Data Fields using Color Scales and Perceptually Adapted Noise.
In Applied Perception in Graphics and Visualization, 2011.

Links:

Abstract:

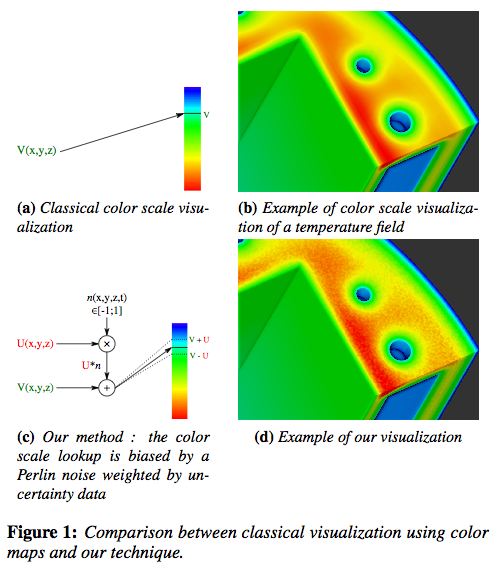

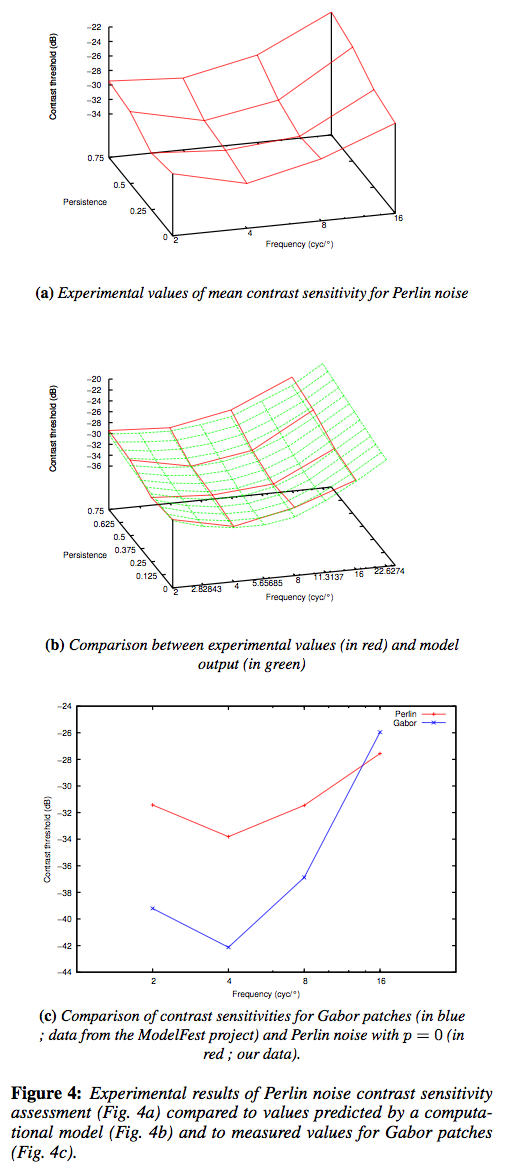

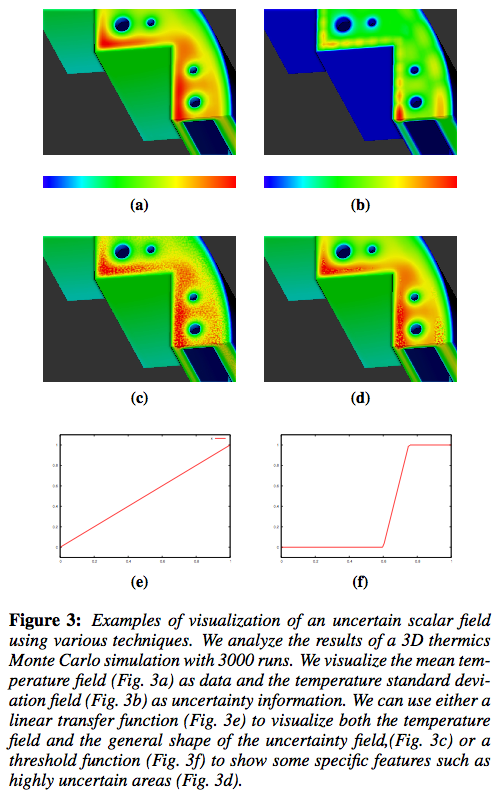

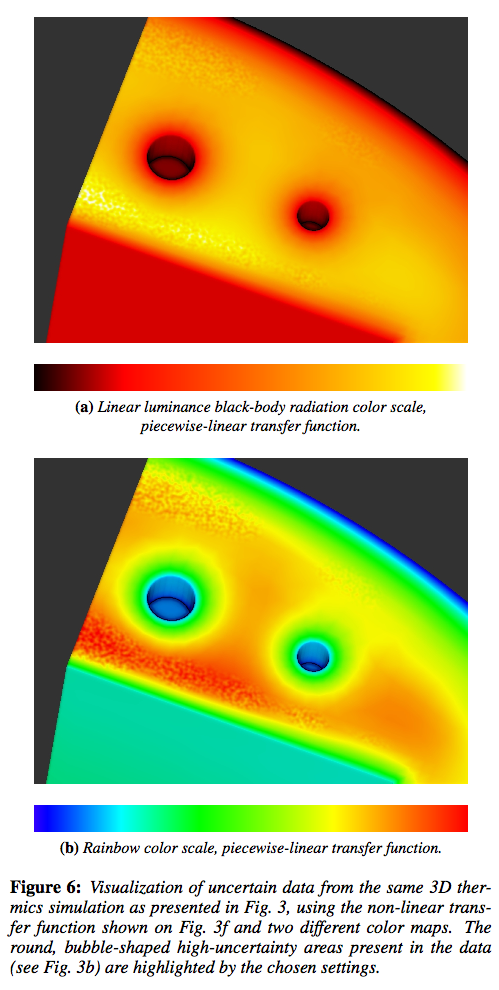

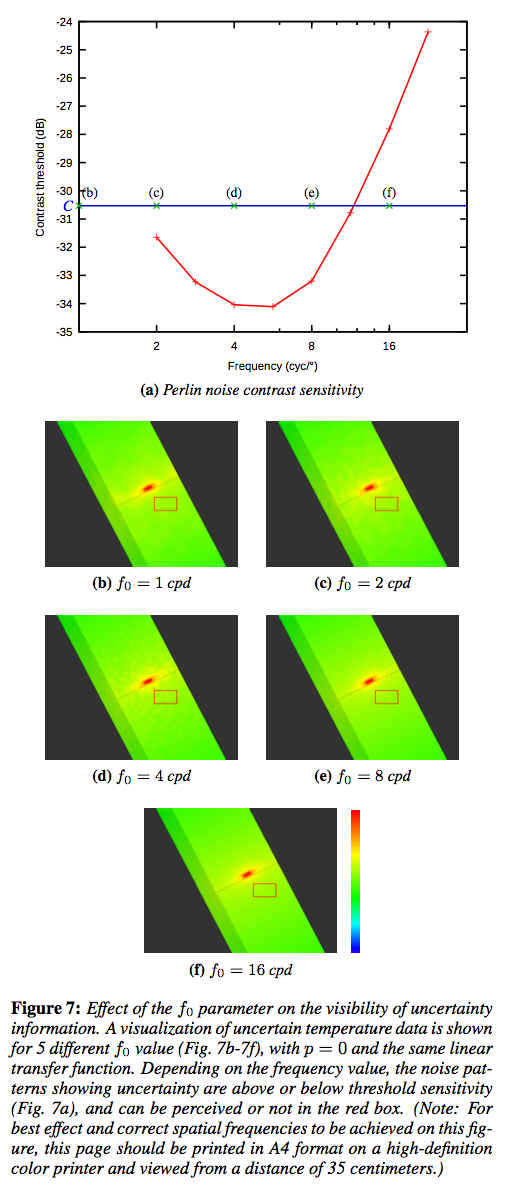

We present a new method to visualize uncertain scalar data fields by combining color scale visualization techniques with animated, perceptually adapted Perlin noise. The parameters of the Perlin noise are controlled by the uncertainty information to produce animated patterns showing local data value and quality. In order to precisely control the perception of the noise patterns, we perform a psychophysical evaluation of contrast sensitivity thresholds for a set of Perlin noise stimuli. We validate and extend this evaluation using an existing computational model. This allows us to predict the perception of the uncertainty noise patterns for arbitrary choices of parameters. We demonstrate and discuss the efficiency and the benefits of our method with various settings, color maps and data sets.

Bibtex:

@InProceedings{  coninx:2011:VUCS,
  author = 	 {Alexandre Coninx and Georges-Pierre Bonneau and
                  Jacques Droulez and Guillaume Thibault},
  title = 	 {Visualization of Uncertain Scalar Data Fields using
                  Color Scales and Perceptually Adapted Noise},
  booktitle =    {Applied Perception in Graphics and Visualization},
  year = 	 {2011},
}

Images:

References:

BLAKEMORE, C., AND CAMPBELL, F. 1969. On the existence of neurones in the human visual system selectively sensitive to the orientation and size of retinal images. Journal of Physiology 203, 237-260.
CAMPBELL, F., AND ROBSON, J. 1968. Application of Fourier analysis to the visibility of gratings. Journal of Physiology 197, 551-566.
CAMPBELL, F., KULIKOWSKI, J., AND LEVINSON, J. 1966. The effect of orientation on the visual resolution of gratings. Journal of Physiology 187, 427-436.
CARNEY, T., KLEIN, S. A., TYLER, C. W., SILVERSTEIN, A. D., BEUTTER, B., LEVI, D., WATSON, A. B., REEVES, A. J., NORCIA, A. M., CHEN, C.-C., MAKOUS, W., AND ECK- STEIN, M. P. 1999. The development of an image/threshold database for designing and testing human vision models. In Proc. SPIE, SPIE, 542-551.
CEDILNIK, A., AND RHEINGANS, P. 2000. Procedural annotation of uncertain information. In Proceedings Visualization 2000. VIS 2000 (Cat. No.00CH37145), IEEE, 77-84.
DJURCILOV, S., KIM, K., LERMUSIAUX, P., AND PANG, A. T. 2002. Visualizing scalar volumetric data with uncertainty. Com- puter & Graphics 26, 239-248.
GRIETHE, H., AND SCHUMANN, H. 2006. The Visualization of Uncertain Data: Methods and Problems. In Simulation und Vi- sualisierung 2006 (SimVis 2006), SCS Publishing House e.V., T. Schulze, G. Horton, B. Prein, and S. Schlechtweg, Eds., vol. vi.
GUSTAVSON, S., 2005. Simplex noise demystified. http: //webstaff.itn.liu.se/ ~stegu/simplexnoise/ simplexnoise.pdf.
KAO, D. L., KRAMER, M. G., LUO, A., DUNGAN, J. L., AND PANG, A. T. 2005. Visualizing distributions from multi-return lidar data to understand forest structure. The Cartographic Jour- nal 42, 1, 35-47.
KELLY, D. H. 1979. Motion and vision II Stabilized spatio- temporal threshold surface. Journal of the Optical Society of America 69, 10 (Oct.), 1340.
KELLY, D. H. 1979. Motion and vision l Stabilized images of stationary gratings. Journal of the Optical Society of America 69, 9 (Sept.), 1266.
KONTSEVICH, L. L., AND TYLER, C. W. 1999. Bayesian adaptive estimation of psychometric slope and threshold. Vision Research 39, 2729 - 2737.
LAGAE, A., LEFEBVRE, S., COOK, R. L., DEROSE, T., DRET- TAKIS, G., EBERT, D. S., LEWIS, J., PERLIN, K., AND ZWICKER, M. 2010. State of the Art in Procedural Noise Functions. In EG 2010 - State of the Art Reports, Eurographics Asso- ciation, E. Hauser and E. Reinhard, Eds.
LI, H., FU, C.-W., LI, Y., AND HANSON, A. J. 2007. Visualizing Large-Scale Uncertainty in Astrophysical Data. IEEE Transac- tions on Visualization and Computer Graphics 13, 6, 1640-1647.
LUNDSTRO M, C., LJUNG, P., PERSSON, A., AND YNNERMAN, A. 2007. Uncertainty visualization in medical volume rendering inria-00600161, version 1 - 14 Jun 2011
using probabilistic animation. IEEE Transactions on Visualiza- tion and Computer Graphics 13, 6, 1648-1655.
LUO, A., KAO, D., AND PANG, A. T. 2003. Visualizing spatial distribution data sets. In Proceedings of the symposium on Data visualisation 2003, Eurographics Association, 29-38.
MICHELSON, A. A. 1962. Studies in Optics. Univ. of Chicago Press.
MULLEN, K. T. 1985. The contrast sensitivity of human coulour vision to red-green and blue-yellow chromatic gratings. Journal of Physiology, 359, 381-400.
OWSLEY, C. 2003. Contrast sensitivity. Ophthalmology Clinics of North America 16, 2 (June), 171-177.
PANG, A. T., WITTENBRINK, C. M., AND LODHA, S. 1997. Approaches to uncertainty visualization. The Visual Computer 13, 8, 370-390.
PERLIN, K. 1985. An Image Synthetizer. In Proceedings of the 12th annual conference on Computer graphics and interactive techniques (SIGGRAPH '85), 287-296.
PERLIN, K., 1999. Making Noise. http://www. noisemachine.com/talk1/.
PERLIN, K. 2002. Improving Noise. In SIGGRAPH '02 Proceedings of the 29th annual conference on Computer graphics and interactive techniques, ACM New York, NY, USA, 681-682.
RIVEIRO, M. 2007. Evaluation of uncertainty visualization techniques for information fusion. In 10th International Conference on Information Fusion, IEEE, 1-8.
ROBSON, J., AND GRAHAM, N. 1981. Probability summation and regional variation in contrast sensitivity across the visual field. Vision Research 21, 409-418.
SKEELS, M., LEE, B., SMITH, G., AND ROBERTSON, G. G. 2009. Revealing uncertainty for information visualization. In- formation Visualization 9, 1 (May), 70-81.
TYLER, C. W. 1992. Bit stealing: how to get 1786 or more gray levels from an 8-bit color monitor. In Proceedings of SPIE, SPIE, 351-364.
VIARD, T. 2010. Algorithmes de visualisation des incertitudes en geomode lisation sur GPU. PhD thesis, Institut National Poly- technique de Lorraine.
WARE , C . 1988. Color Sequences for Univariate Maps: Theory, Experiments, and Principles. IEEE Computer Graphics And Applications Computer Graphics And Applications, September, 41-49.

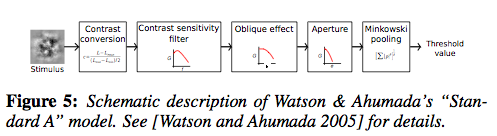

WATSON, A. B., AND AHUMADA, A. J. 2005. A standard model for foveal detection of spatial contrast. Journal of Vision 5, 717- 740.
WATSON, A. B., 1999. ModelFest web site. http://vision. arc.nasa.gov/modelfest/.
WATSON , A. B. 2000. Visual detection of spatial contrast patterns: Evaluation of five simple models. Optics Express 6, 1 (Jan.), 12-33.
WITTENBRINK, C. M., PANG, A. T., AND LODHA, S. K. 1996. Craig M. Wittenbrink,. IEEE Transactions on Visualization and Computer Graphics 2, 3, 266-279.
