Israel Huff and Chris Weigle and David C. Banks.
Ensemble-Space Visualization Improves Perception of 3D State of Molecular Dynamics Simulation.
In Proceedings of the 5th symposium on Applied perception in graphics and visualization, pp. 163--170, 2008.

Links:

Abstract:

Large-scale molecular dynamics (GD) simulations are some of the primary applications running on today's supercomputers. These simulations frequently compute the interactions of millions of atoms over millions of time steps, and petascale simulations will target billion atom simulations in the near future. Visualizing the state of such large-scale simulations poses a significant challenge for both data reduction and perception. Standard tools for 3D visualization of MD simulations -- such as direct visualization of the molecules in their simulated physical arrangement -- eventually grow so dense (with more atoms than screen pixels) that only the volumetric shape of the simulation domain is apparent, rather than its detailed content. In this paper, we describe a method for visualizing simulations of a compound in bulk which we refer to as the ensemble display. An ensemble display is produced by superimposing molecular neighborhoods onto fixed reference molecules. This results in a 3D visualization which preserves inter-molecular distances and angles between pairs of molecules while greatly reducing the visual complexity. We performed human-subjects experiments to test the hypothesis that subjects could deduce a bulk physical property of the simulation (temperature) from the ensemble display more accurately than from other common visualizations of GD simulation. Our results show that temperature estimates under the ensemble display had the least error of the tested visualization techniques.

Bibtex:

@InProceedings{  huff:2008:ESVP,
  author = 	 {Israel Huff and Chris Weigle and David C. Banks},
  title = 	 {Ensemble-Space Visualization Improves Perception of 3D State of Molecular Dynamics Simulation},
  booktitle =    {Proceedings of the 5th symposium on Applied perception in graphics and visualization},
  pages = 	 {163--170},
  year = 	 {2008},
  series = 	 {APGV '08},
}

Images:

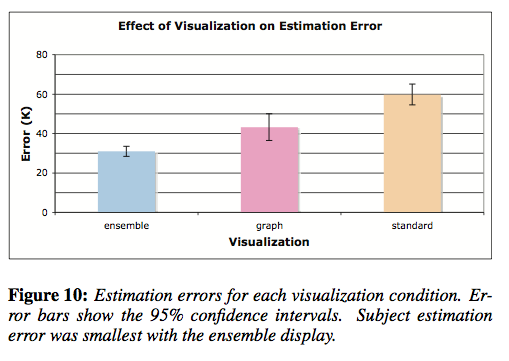

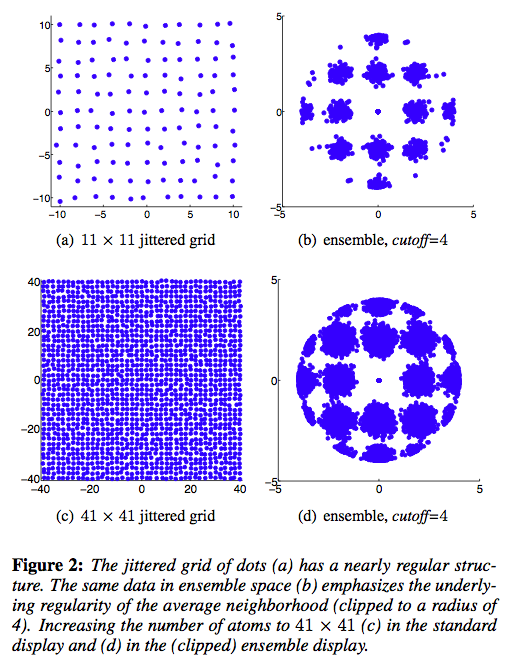

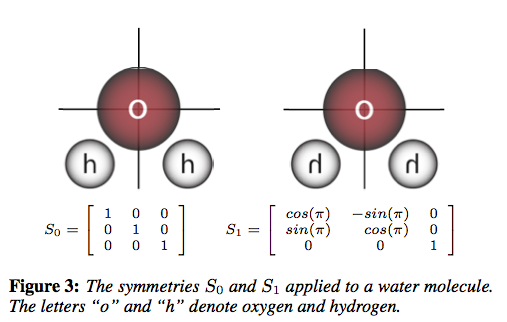

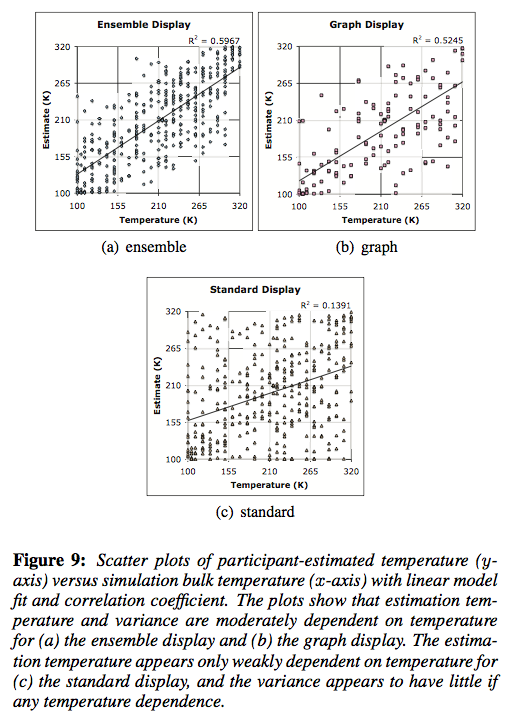

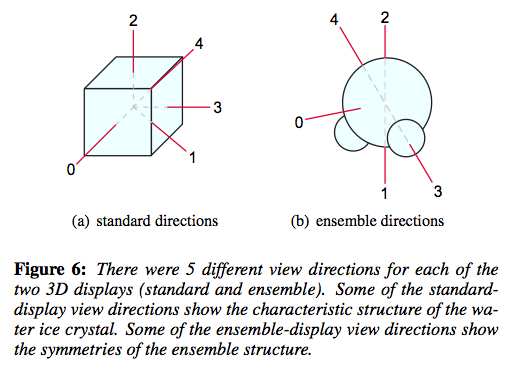

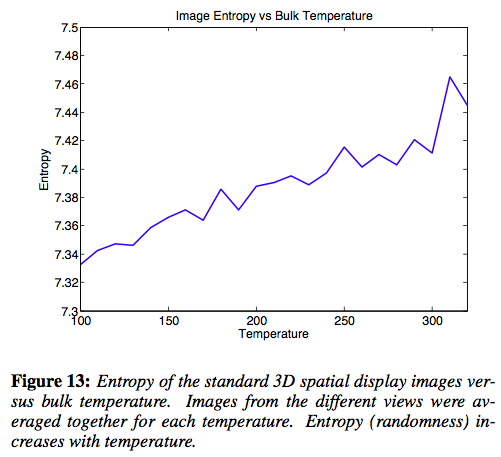

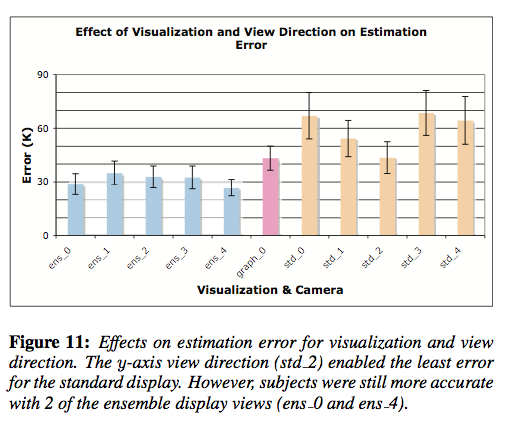

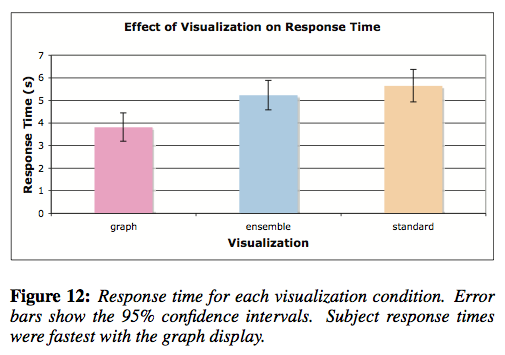

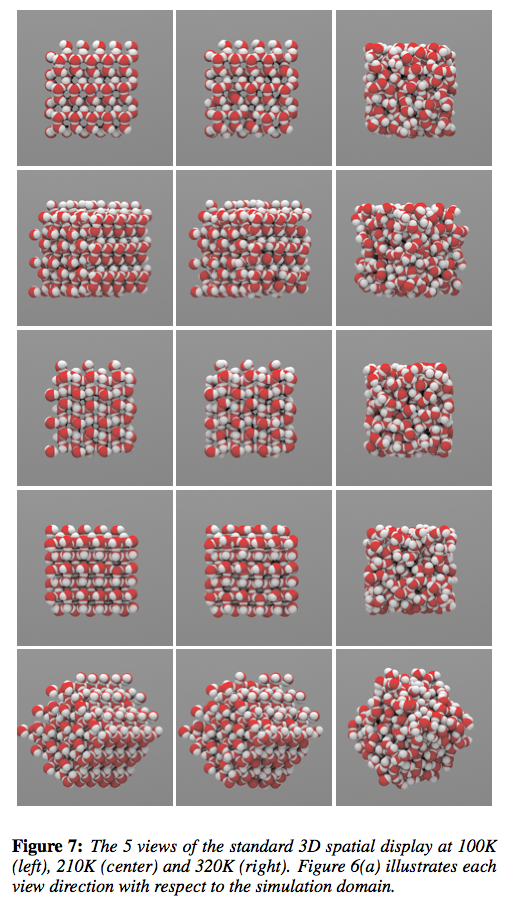

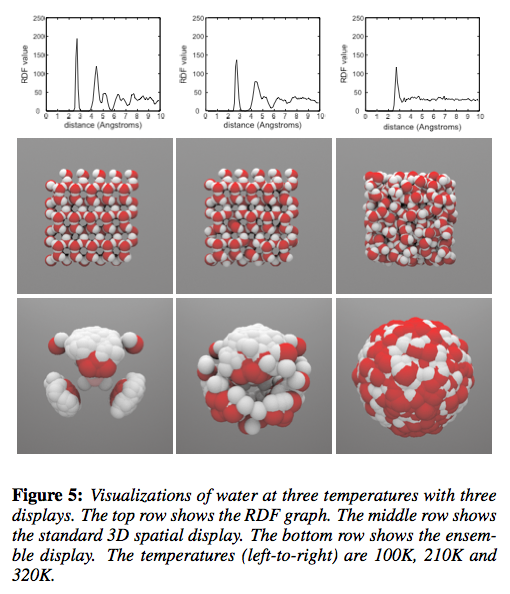

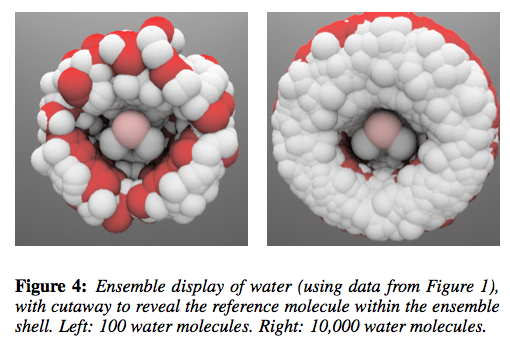

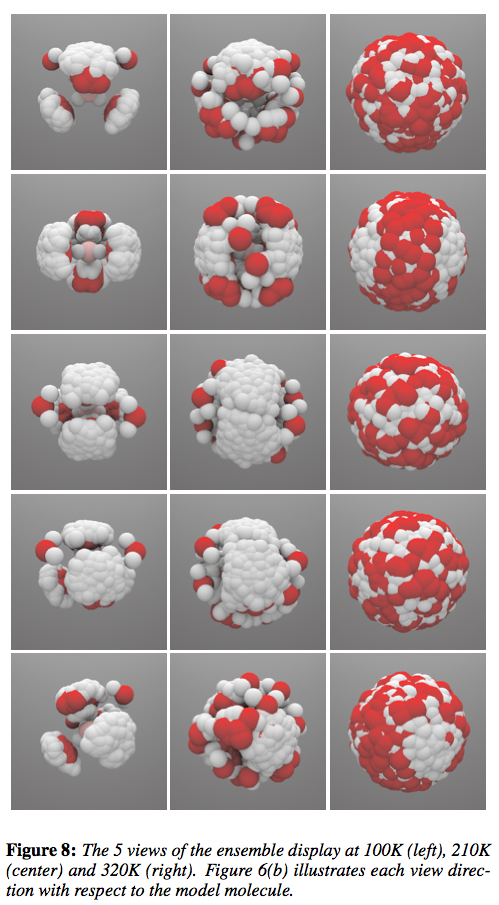

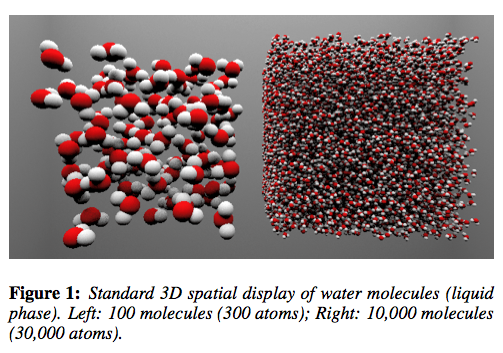

References:

David C. Banks , Kevin Beason, Fast Global Illumination for Visualizing Isosurfaces with a 3D Illumination Grid, Computing in Science and Engineering, v.9 n.1, p.48-54, January 2007
Bergman, D. L., Laaksonen, L., and Laaksonen, A. 1997. Visualization of solvation structures in liquid mixtures. Journal of Molecular Graphics and Modelling 15, 301--306.
Chialvo, A. A., and Cummings, P. T. 1998. Simple transferable intermolecular potential for the molecular simulation of water over wide ranges of state conditions. Fluid Phase Equilibria 150--151, 73--81.
de la Pea, L. H., Razul, M. S. G., and Kusalik, P. G. 2005. Quantum effects in ice ih. Journal of Chemical Physics 123, 144506, 1--9.
Griebel, M., Knapek, S., and Zumbusch, G. 2007. Numerical simulation in molecular dynamics.
Kadau, K., Germann, T. C., and Lomdahl, P. S. 2006. Molecular Dynamics Comes of Age: 320 Billion Atom Simulation on BlueGene/L. International Journal of Modern Physics C 17, 1755--1761.
A. Ravishankar Rao , Gerald L. Lohse, Towards a texture naming system: identifying relevant dimensions of texture, Proceedings of the 4th conference on Visualization '93, October 25-29, 1993, San Jose, California
A. Ravishankar Rao , Gerald L. Lohse, Identifying high level features of texture perception, CVGIP: Graphical Models and Image Processing, v.55 n.3, p.218-233, May 1993
S. C. Gay, E. S., and Haymet, A. 2002. Dynamics of melting and stability of ice 1h: Molecular-dynamics simulations of the spc/e model of water. Journal of Chemical Physics 116, 20, 8876--80.
Tamura, H., Mori, S., and Yamawaki, T. 1978. Textural features corresponding to visual perception. IEEE Transactions on Systems, Man, and Cybernetics, 6, 460--473.
van der Spoel, D., Lindahl, E., and Hess, B. 2001. Gromacs: A package for molecular simulation and trajectory analysis. Journal of Molecular Modeling 7, 306--317.
