Kristin Potter and Joe Kniss and Richard Riesenfeld and Chris R. Johnson.
Visualizing Summary Statistics and Uncertainty.
In Computer Graphics Forum (Proceedings of Eurovis 2010), vol. 29, no. 3, pp. 823-831, 2010.

Abstract:

The graphical depiction of uncertainty information is emerging as a problem of great importance. Scientific data sets are not considered complete without indications of error, accuracy, or levels of confidence. The visual portrayal of this information is a challenging task. This work takes inspiration from graphical data analysis to create visual representations that show not only the data value, but also important characteristics of the data including uncertainty. The canonical box plot is reexamined and a new hybrid summary plot is presented that incorporates a collection of descriptive statistics to highlight salient features of the data. Additionally, we present an extension of the summary plot to two dimensional distributions. Finally, a use-case of these new plots is presented, demonstrating their ability to present high-level overviews as well as detailed insight into the salient features of the underlying data distribution.

Bibtex:

@Article{        potter:2010:VSSU,
  author = 	 {Kristin Potter and Joe Kniss and Richard Riesenfeld
                  and Chris R. Johnson},
  title = 	 {Visualizing Summary Statistics and Uncertainty},
  journal =      {Computer Graphics Forum (Proceedings of Eurovis 2010)},
  pages = 	 {823-831},
  year = 	 {2010},
  volume = 	 {29},
  number = 	 {3},
}

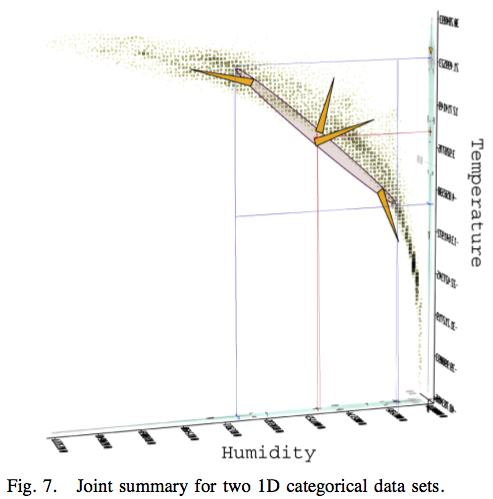

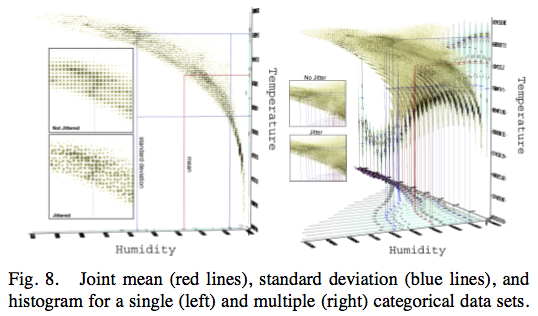

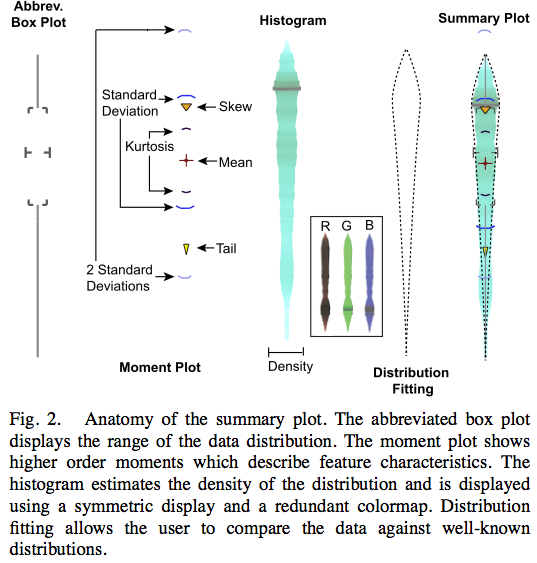

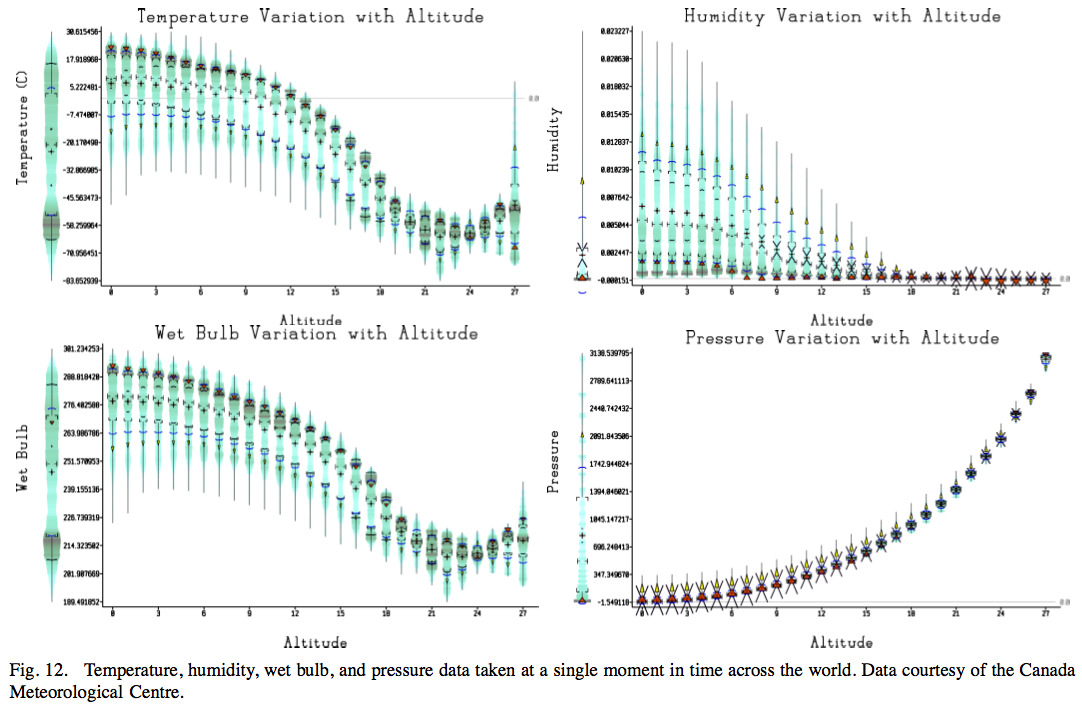

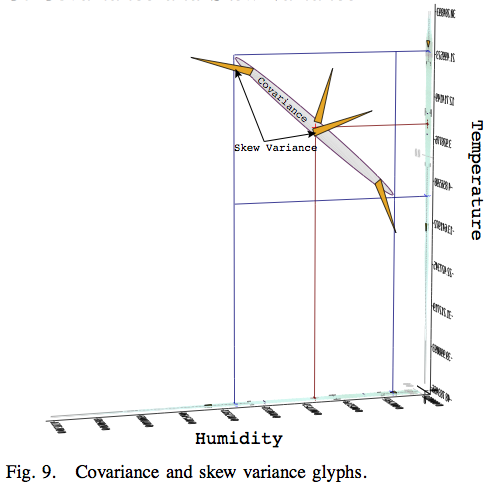

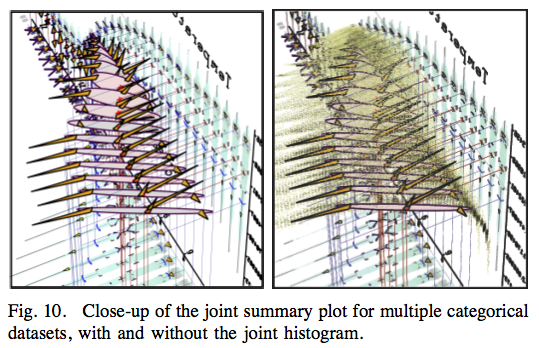

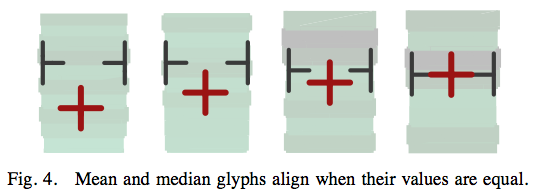

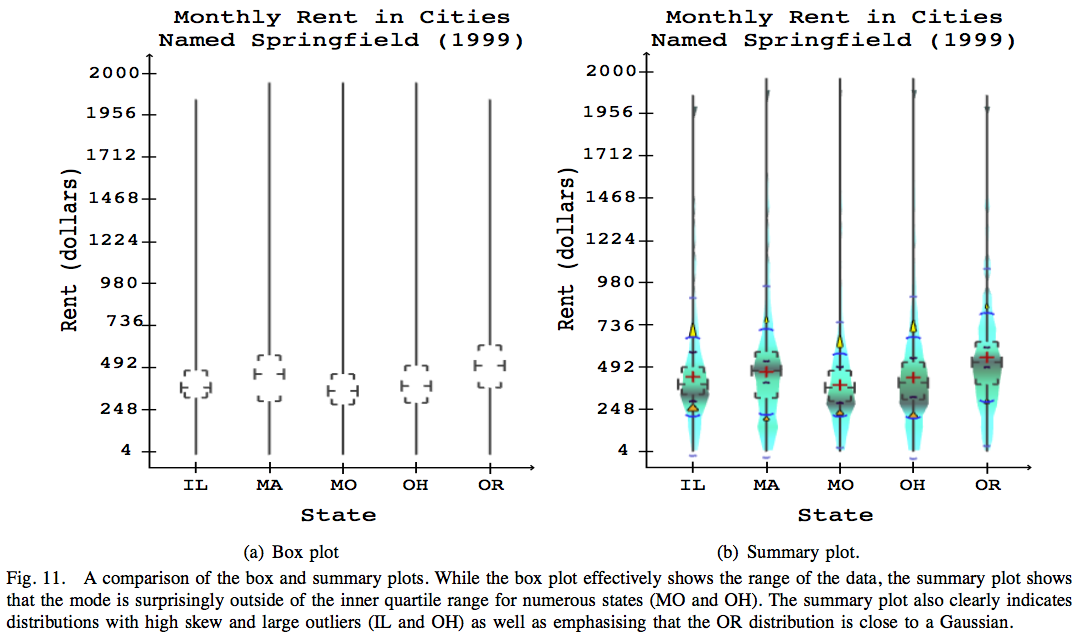

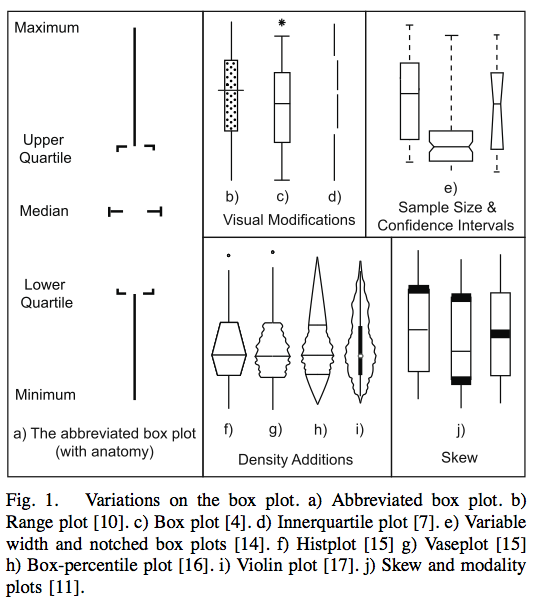

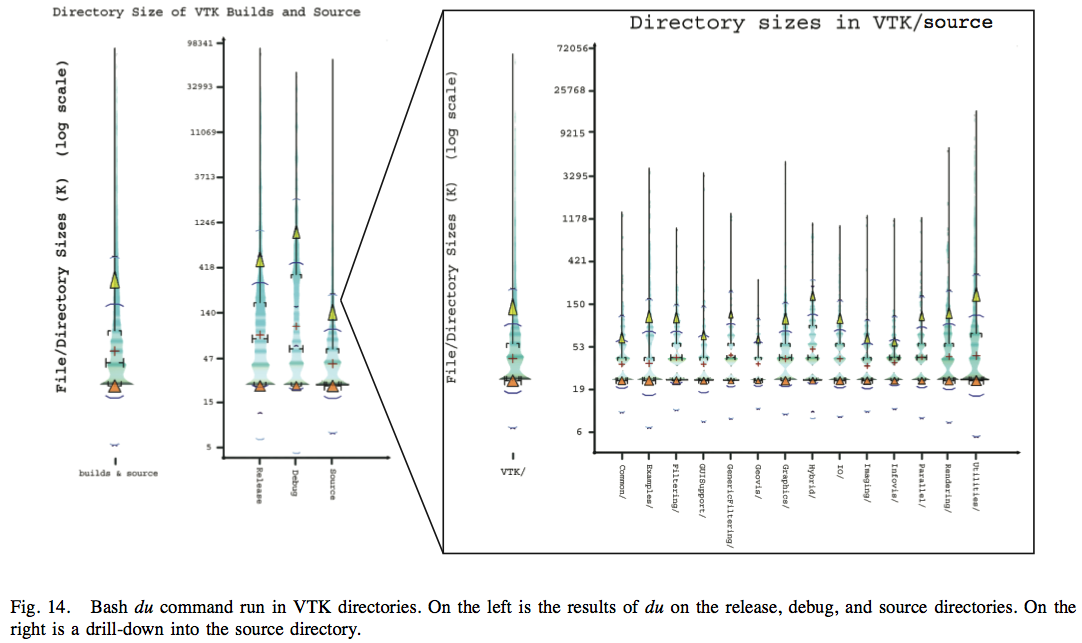

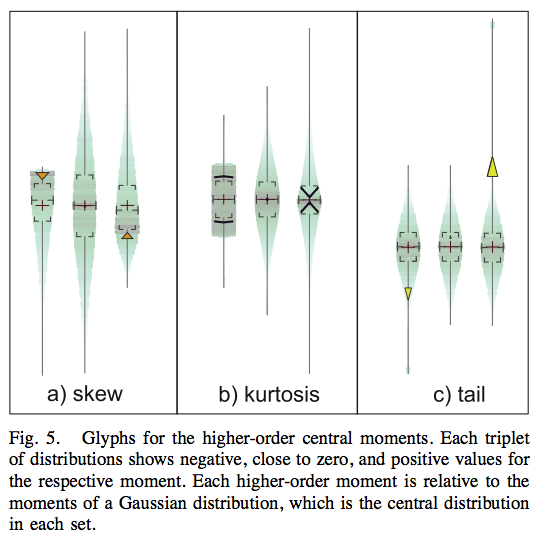

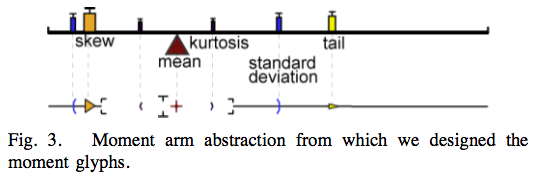

Images:

References:


Bain L. J., Engelhardt M.: Introduction to Probability and Mathematical Statistics. Duxbury Press, 1992.
Benjamini Y.: Opening the box of a boxplot. The American Statistician 42, 4 (November 1988), 257-262.
Becketti S., Gould W.: Rangefinder box plots. The American Statistician 41, 2 (May 1987), 149.
Bishop C. M.: Pattern Recognition and Machine Learning. Springer, 2006.
Cohen D. J., Cohen J.: The sectioned density plot. The American Statistician 60, 2 (May 2006), 167-174.
Chambers J. M., Cleveland W. S., Kleiner B., Tukey P. A.: Graphical Methods for Data Analysis. Wadsworth, 1983.
Cleveland W. S.: The Elements of Graphing Data. Hobart Press, 1994.
Choonpradub C., McNeil D.: Can the box plot be improved Songklanakarin Journal of Science and Technology 27, 3 (2005), 649-657.
Doane D. P., Tracy R. L.: Using beam and fulcrum displays to explore data. The American Statistician 54, 4 (November 2000), 289-290.
Esty W. W., Banfield J. D.: The box-percentile pot. Journal of Statistical Software 8, 17 (2003).
Frigge M., Hoaglin D. C., Iglewicz B.: Some implementations of the box plot. The American Statistician 43, 1 (February 1989), 50-54.
Gruber M., Hsu K.-Y.: Moment-based image normalization with high noise-tolerance. IEEE Transactions on Pattern Analysis and Machine Intelligence 19, 2 (1997), 136-139.
Goldberg K. M., Iglewicz B.: Bivariate extensions of the boxplot. Technometrics 34, 3 (August 1992), 307-320.
Haemer K. W.: Range-bar charts. The American Statistician 2, 2 (April 1948), 23.
Hintze J. L., Nelson R. D.: Violin plots: A box plot-density trace synergism. The American Statistician 52, 2 (May 1998), 181-184.
Johnson C. R.: Top scientific visualization research problems. IEEE Computer Graphics and Applications 24, 4 (JulyAugust 2004), 13-17.
Johnson C. R., Sanderson A. R.: A next step: Visualizing errors and uncertainty. IEEE Computer Graphics and Applications 23, 5 (2003), 6-10.
McGill R., Tukey J. W., Larsen W. A.: Variations of box plots. The American Statistician 32, 1 (February 1978), 12-16.
NCEP: Short-range ensemble forecasting. http://wwwt.emc.ncep.noaa.gov/mmb/SREF/SREF.html .
Parzen E.: On estimation of a probability density function and mode. The Annals of Mathematical Statistics 33, 3 (1962), 1065-1076.
Potter K.: Methods for presenting statistical information: The box plot. In HansHagen, AndreasKerren, and PeterDannenmann (Eds.), Visualization of Large and Unstructured Data Sets, GI-Edition Lecture Notes in Informatics (LNI) S-4 (2006), 97-106.
Rousseeuw P. J., Ruts I., Tukey J. W.: The bag-plot: A bivariate boxplot. The American Statistician 53, 4 (November 1999), 382-287.
Spear M. E.: Charting Statistics. McGraw-Hill, 1952.
Tongkumchum P.: Two-dimensional box plot. Songklanakarin Journal of Science and Technology 27, 4 (2005), 859-866.
Tufte E. R.: The Visual Display of Quantitative Information. Graphics Press, 1983.
Tukey J. W.: Exploratory Data Analysis. Addison-Wesley, 1977.
Wilkinson L.: Dot plots. The American Statistician 53, 3 (August 1999), 276-281.
Wilkinson L.: The Grammar of Graphics. Springer-Verlag New York, Inc., 1999.
