glift::StateGLI Class Reference

#include <stateGLI.h>

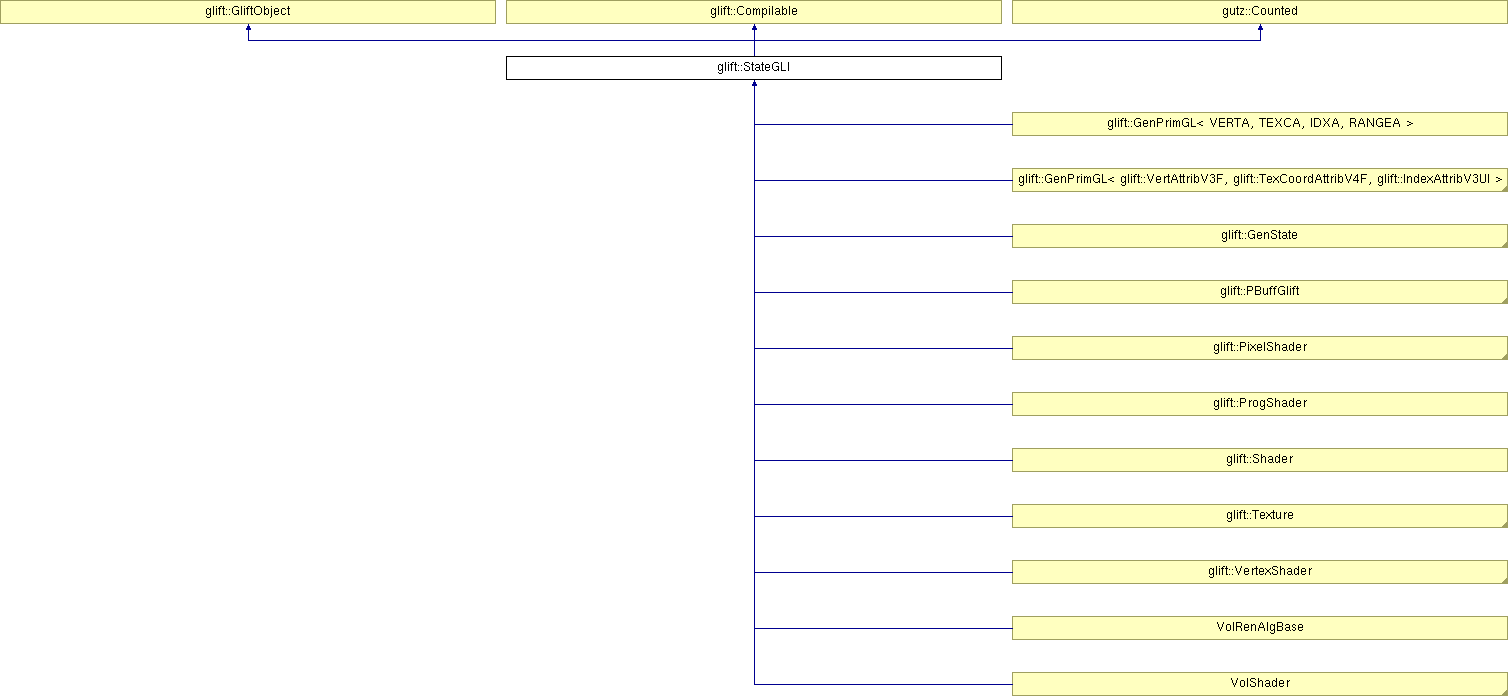

Inheritance diagram for glift::StateGLI:

List of all members.

Detailed Description

"state.h" implementation file for the Attribute class

This abstract class provides the interface for any bindDef()/release() state. Exs are pixelShaders, vertexShaders, textures, pbuffers, or any other state change to the rendering pipeline that can be modeled with the init/bind/release abstraction.

The "GenState" class should be sub-classed for states where it is okay to have more than one of that state. If there can be only one, the new class should be parallel to texture, pixelShader, etc. and added to the Shader class (constructor, private member, wrapped in another state, etc). Hopefully there won't be many more of these...

For the other pure virtual classes, their "raison d'etre" is to enforce a class heirarchy to allow for shader typechecking.

The pure virtual destructor has an empty implementation b/c it is required by the compiler (see Eff. C++ by Scott Meyer).

The Base State Object StateGLI - Abstract interface for a bind()/release() state class

Definition at line 59 of file stateGLI.h.

Public Member Functions

StateGLI ()

virtual ~StateGLI ()

void bind ()

void release ()

bool isBound ()

virtual void compile ()

virtual bool hasNonCompilable ()

virtual void setErrStream (std::ostream *os)

Where do you want gl errors to go? they must go somewhere, so don't set it to zero please.

virtual std::ostream * getErrStream () const

Where are gl errors going?

Protected Member Functions

virtual void bindDef ()=0

Redefine these for specific attributes.

virtual void releaseDef ()=0

virtual bool isCompiled () const

void err (const char *where, const char *when=0) const

error

std::ostream & err () const

a simpler way, just use the stream! only for always print, this one automatically adds the objects name

void derr (const char *where, const char *when=0) const

debug error

bool glerr (const char *where, const char *when=0) const

gl error report only in debug mode, only if there is an error, if so return true

std::ostream & estr () const

this one just gives you the stream

virtual void _incCount ()

gutz::Counted interface, increment reference count by one.

virtual void _decCount ()

gutz::Counted interface, decrement reference count by one.

virtual int _getCount () const

gutz::Counted interface, get the current reference count.

Friends

class SmartPtr

class SmartPtrRef

Constructor & Destructor Documentation

StateGLI::StateGLI ( )

Definition at line 28 of file stateGLI.cpp.

StateGLI::~StateGLI ( ) [virtual]

Definition at line 32 of file stateGLI.cpp.

Member Function Documentation

virtual void gutz::Counted::_decCount ( ) [inline, protected, virtual, inherited]

gutz::Counted interface, decrement reference count by one.
Not generaly used by subclasses, mostly for collaboration with gutz::SmartPtr. Sometimes you need to call this though, see the documentation for gutz::SmartPtr
Definition at line 54 of file smartptr.h.
Referenced by TFImage::clear(), NrroImage::fBlendOverRGBA(), and Nrro::updateMinMax().

virtual int gutz::Counted::_getCount ( ) const [inline, protected, virtual, inherited]

gutz::Counted interface, get the current reference count.
Not generaly used by subclasses, mostly for collaboration with gutz::SmartPtr.
Definition at line 58 of file smartptr.h.

virtual void gutz::Counted::_incCount ( ) [inline, protected, virtual, inherited]

gutz::Counted interface, increment reference count by one.
Not generaly used by subclasses, mostly for collaboration with gutz::SmartPtr. Sometimes you need to call this though, see the documentation for gutz::SmartPtr
Definition at line 48 of file smartptr.h.
Referenced by TFImage::clear(), NrroImage::fBlendOverRGBA(), and Nrro::updateMinMax().

void StateGLI::bind ( )

Definition at line 34 of file stateGLI.cpp.
References bindDef(), glift::DispList::isCompiled(), and glift::DispList::issue().
Referenced by glift::SubTex::bindDef(), glift::CoreTex::bindDef(), glift::Shader::bindDef(), glift::ProgShader::bindDef(), glift::ShadedPrim::drawDef(), and VolRenAlgBase::drawTris().

virtual void glift::StateGLI::bindDef ( ) [protected, pure virtual]

Redefine these for specific attributes.

All calls def'd inside will be compiled into display list.

Implemented in VolRenAlgBase, VolShader, VolShaderStd, glift::GenPrimGL< VERTA, TEXCA, IDXA, RANGEA >, Color4f, Blend, RenderState2D, glift::FragProgARB, glift::PBuffGlift, glift::PixelShaderATI8K, glift::ProgShader, glift::Shader, glift::SubPBuff, glift::VertexProgARB, glift::EmptyTex, glift::MultiTex, glift::SingleTex, glift::CoreTex, glift::SubTex, glift::TexCube, glift::Texture, and glift::GenPrimGL< glift::VertAttribV3F, glift::TexCoordAttribV4F, glift::IndexAttribV3UI >.
Referenced by bind().

void StateGLI::compile ( ) [virtual]

Compile new disply lists
Force deletion/construction of new objects in case a display list already exists for this object.
Implements glift::Compilable.
Definition at line 81 of file stateGLI.cpp.
References glift::DispList::compile(), and glift::g_compiling.
Referenced by glift::VertexProgARB::reset(), glift::PixelShaderATI8K::reset(), and glift::FragProgARB::reset().

void glift::GliftObject::derr ( const char * where,

const char * when = 0

) const [inline, protected, inherited]

debug error

Definition at line 122 of file gliftObject.h.
References glift::GliftObject::m_err.

std::ostream & glift::GliftObject::err ( ) const [inline, protected, inherited]

a simpler way, just use the stream! only for always print, this one automatically adds the objects name

Definition at line 111 of file gliftObject.h.
References glift::GliftObject::m_err.
Referenced by glift::CoordTrans::apply(), glift::SubTex::bindDef(), glift::PrimGL::bindIndices(), glift::SubdivPlanarQuadS::bindQuads(), glift::PrimGL::bindTexCoords(), glift::CoreTex::checkTexType(), glift::EmptyTex::copyToTex(), glift::CoreTex::CoreTex(), glift::FuncTex::FuncTex(), glift::Shader::genTexCoords(), glift::CoreTex::getDataf(), glift::CoreTex::getDataub(), glift::VertexProgARB::init(), glift::FragProgARB::init(), glift::PriorityTex::PriorityTex(), glift::VertexProgARB::reload(), glift::FragProgARB::reload(), glift::RenderableGLI::render(), glift::RenderPass::renderDef(), glift::EmptyTex::resetTexState(), glift::PixelShaderATI8K::setLocalConstf(), glift::TexCube::setTexData(), glift::EmptyTex::setTexData(), glift::ShadedPrim::ShadedPrim(), glift::TexConst::TexConst(), glift::TexCube::TexCube(), and glift::EmptyTex::tryToBindPbuff().

void glift::GliftObject::err ( const char * where,

const char * when = 0

) const [inline, protected, inherited]

error

Definition at line 101 of file gliftObject.h.
References glift::GliftObject::m_err.
Referenced by glift::SubPBuff::enable().

std::ostream& glift::GliftObject::estr ( ) const [inline, protected, inherited]

this one just gives you the stream

Definition at line 84 of file gliftObject.h.
References glift::GliftObject::m_err.
Referenced by glift::CoreTex::bindDef(), glift::Shader::bindDef(), glift::MultiTex::bindDef(), glift::EmptyTex::bindDef(), glift::DispList::compile(), glift::CoreTex::CoreTex(), glift::VertexProgARB::init(), glift::FragProgARB::init(), glift::MultiTex::releaseDef(), and glift::EmptyTex::releaseDef().

virtual std::ostream* glift::GliftObject::getErrStream ( ) const [inline, virtual, inherited]

Where are gl errors going?

Definition at line 49 of file gliftObject.h.
References glift::GliftObject::m_err.
Referenced by glift::getProgShaderFromFile(), and glift::getProgShaderFromText().

bool GliftObject::glerr ( const char * where,

const char * when = 0

) const [protected, inherited]

gl error report only in debug mode, only if there is an error, if so return true

Definition at line 31 of file gliftObject.cpp.
References glGetError(), and GLuint.
Referenced by RenderState2D::bindDef(), glift::NormalAttrib< VAT >::disableDef(), glift::IndexAttrib< VAT >::disableDef(), glift::TexCoordAttrib< VAT >::disableDef(), glift::VertAttrib< VAT >::disableDef(), glift::GenDrawAttrib< VAT >::disableDef(), glift::DrawAlgImm::draw(), glift::DrawAlgArr::draw(), glift::ShadedPrim::drawDef(), glift::NormalAttrib< VAT >::enableDef(), glift::IndexAttrib< VAT >::enableDef(), glift::TexCoordAttrib< VAT >::enableDef(), glift::VertAttrib< VAT >::enableDef(), glift::GenDrawAttrib< VAT >::enableDef(), and RenderState2D::releaseDef().

virtual bool glift::StateGLI::hasNonCompilable ( ) [inline, virtual]

Definition at line 72 of file stateGLI.h.

bool glift::StateGLI::isBound ( ) [inline]

Definition at line 70 of file stateGLI.h.
Referenced by glift::GenPrimGL< VERTA, TEXCA, IDXA, RANGEA >::drawDef(), VolShader::setBlend(), VolRenAlgBase::setGeom(), VolShader::setPixelShader(), VolRenAlgBase::setShader(), VolShader::setVertexShader(), and VolRenAlgBase::setVolytope().

virtual bool glift::StateGLI::isCompiled ( ) const [inline, protected, virtual]

Implements glift::Compilable.
Definition at line 81 of file stateGLI.h.
Referenced by glift::VertexProgARB::reset(), glift::PixelShaderATI8K::reset(), and glift::FragProgARB::reset().

void StateGLI::release ( )

Definition at line 57 of file stateGLI.cpp.
References glift::DispList::isCompiled(), glift::DispList::issue(), and releaseDef().
Referenced by glift::ShadedPrim::drawDef(), VolRenAlgBase::drawTris(), glift::CoreTex::getDataub(), glift::SubTex::releaseDef(), glift::CoreTex::releaseDef(), glift::Shader::releaseDef(), and glift::ProgShader::releaseDef().

virtual void glift::StateGLI::releaseDef ( ) [protected, pure virtual]

Implemented in VolRenAlgBase, VolShader, VolShaderStd, glift::GenPrimGL< VERTA, TEXCA, IDXA, RANGEA >, Color4f, Blend, RenderState2D, glift::FragProgARB, glift::PBuffGlift, glift::PixelShaderATI8K, glift::ProgShader, glift::Shader, glift::SubPBuff, glift::VertexProgARB, glift::EmptyTex, glift::MultiTex, glift::SingleTex, glift::CoreTex, glift::SubTex, glift::TexCube, glift::Texture, and glift::GenPrimGL< glift::VertAttribV3F, glift::TexCoordAttribV4F, glift::IndexAttribV3UI >.
Referenced by release().

virtual void glift::GliftObject::setErrStream ( std::ostream * os ) [inline, virtual, inherited]

Where do you want gl errors to go? they must go somewhere, so don't set it to zero please.

Definition at line 44 of file gliftObject.h.
References glift::GliftObject::m_err.
Referenced by glift::getProgShaderFromFile(), and glift::getProgShaderFromText().

Friends And Related Function Documentation

friend class SmartPtr [friend, inherited]

Definition at line 40 of file smartptr.h.
Referenced by Nrro::NrroIter< T >::NrroIter().

friend class SmartPtrRef [friend, inherited]

Definition at line 41 of file smartptr.h.

The documentation for this class was generated from the following files:
